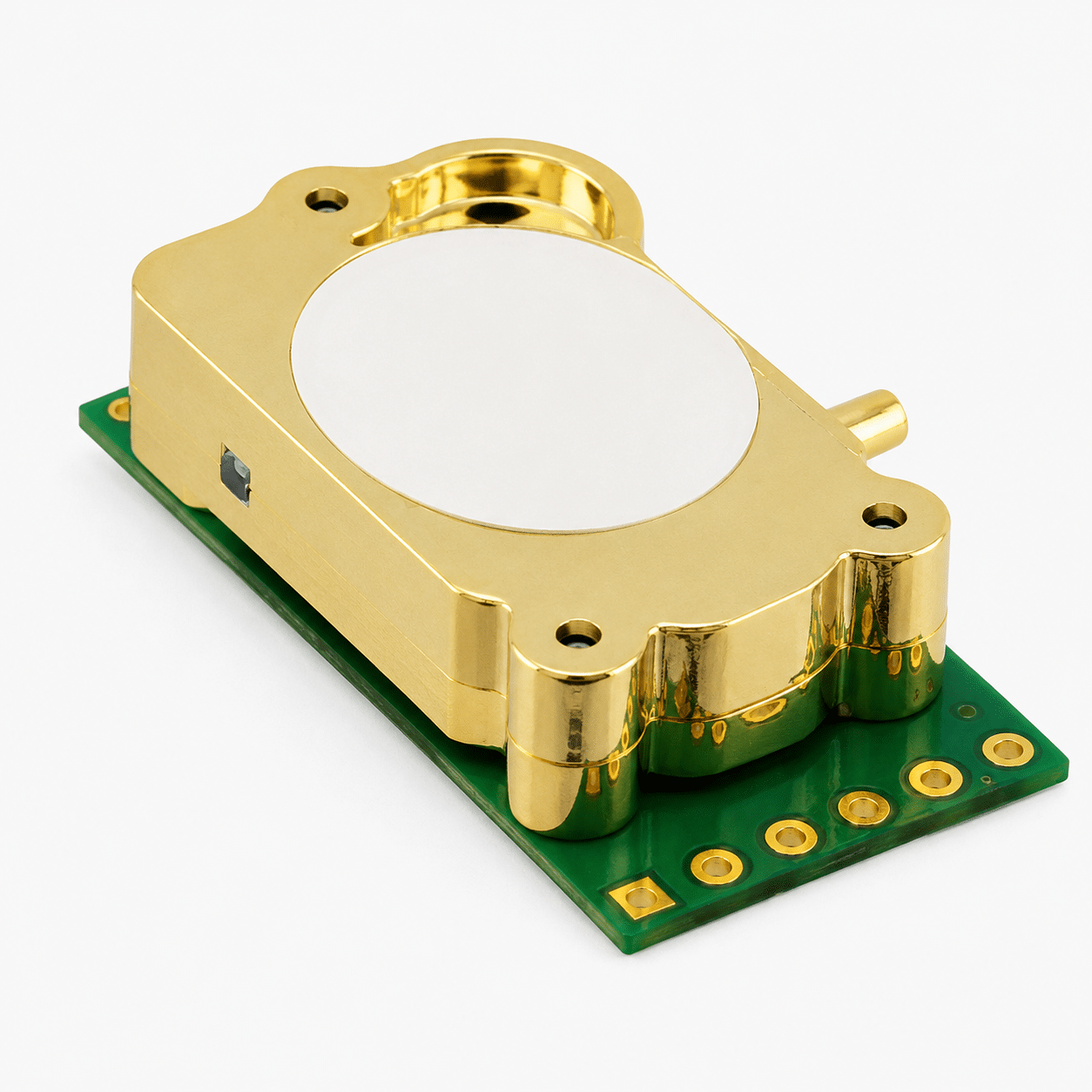

T6713-5K NDIR CO2 Sensor
Non-Dispersive Infrared Waveguides meet Smart Telemetry – The Professional 0-5000 ppm Carbon Dioxide Module Choice for Indoor Air Quality (IAQ) Controls.
// Pre-Calibrated Dual-Channel I2C / UART Digital Interface Portfolio
The Non-Dispersive Infrared Sensing Advantage
The T6713-5K represents a cutting-edge mini-modular benchmark for carbon dioxide (CO2) gas concentration management in space-constrained layouts. Engineered by Amphenol Advanced Sensors (Telaire) utilizing advanced Non-Dispersive Infrared (NDIR) optoelectronic waveplates, this sensor chip measures carbon dioxide concentration levels up to 5000ppm. Armed with patented ABC Logic automatic baseline calibration algorithms, it eliminates system drift hazards and secures decades of steady, maintenance-free operational tracking loops.
- 0-5000 ppm wide measuring envelope tracking accurate carbon gas curves
- Flexible integrated digital link protocols supporting direct I2C and UART processing
- Patented ABC Logic self-calibration system neutralizing sensor degradation hazards
Key Performance Advantages
0-5000 ppm IAQ Range
Optimized precisely for indoor ventilation standards, delivering high-resolution monitoring for greenhouse, office building, and smart home eco-loops.
Lifetime ABC Calibration
Runs automated digital base re-tuning based on structural minimums over a 14-day loop, bypassing the need for manual zero-gas gas recalibrations.
Low Power & Mini-Footprint
Engineered on a ultra-compact PCB form factor, drawing low active current profiles that match battery-assisted air telemetry nodes perfectly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Amphenol Advanced Sensors (Telaire Brand) |
| Part Number (MPN) | T6713-5K |
| Sensing Technology | Non-Dispersive Infrared (NDIR) Waveguide Core Matrix |
| Measurement Envelope | 0 to 5,000 ppm (Parts Per Million Continuous Tracking) |
| Sensing Accuracy Node | ±30 ppm or ±3% of reading (Whichever is greater) |
| Digital Communication Interfaces | I2C (Up to 100kHz) and UART Serial Logic Link |
| Operating Rail Voltage | DC 4.5V to 5.5V Regulated Input Core Constraints |
| Average Power Current | ~25 mA (Peak currents up to 200 mA during IR pulse) |
| Calibration Algorithm | Automatic Background Calibration (ABC Logic Subsystem Active) |
| Operating Conditions | 0°C to +50°C Temperature Window / 0 to 95% RH Non-Condensing |
Versatile Environmental Applications
- HVAC & Ventilation Systems: Drives smart demand-controlled ventilation (DCV) loops to optimize real-time building fresh air intake.
- Indoor Air Quality Monitor (IAQ): Functions as the core sensor chip inside high-end room carbon monitors, air purifiers, and weather stations.
- Smart Home Ecosystems: Seamlessly maps carbon curves to automated smart home gateways via clean I2C logic lines.
- Agricultural Greenhouses: Regulates critical ambient carbon data logging required for maximized crop respiration cycles.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
