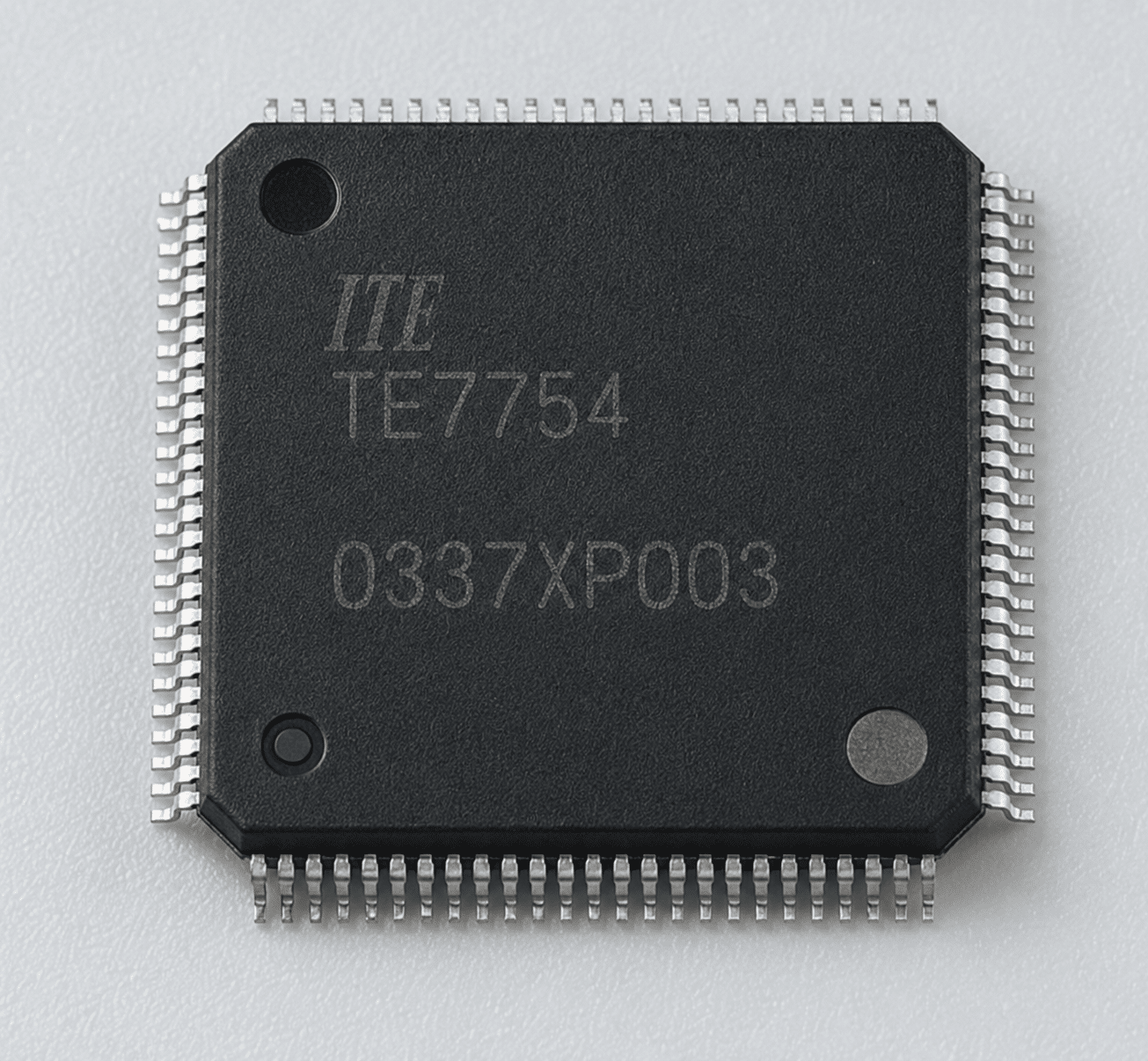

TE7754PF Expanded I/O Hub Controller IC
Dual-Channel Serial Expansion meets Parallel Processing – The Professional Peripheral Coprocessor IC Choice for Factory Automation & Office Automation Mainboards.
// Tokyo Electron Device (TED) Line Portfolio
The Parallel I/O Expansion Advantage
The TE7754PF perfectly balances robust parallel data mapping with high-speed serial link capability. Its highly integrated architecture allows master processors to offload dense peripheral monitoring tasks, saving critical CPU clock cycles. Purpose-built for industrial environments, it provides stable bit-level direction settings to ensure fail-safe operations under severe electromagnetic environments.
- Built-in 8-bit parallel I/O supporting flexible 9-group configurations
- Dual-channel independent asynchronous UART with 8-byte FIFO per channel
- Integrated 8-channel analog voltage converter matrix for sensing feeds
Key Performance Advantages
FIFO-Buffered Serial Hub
Equipped with independent dual asynchronous communication ports. Each channel features an 8-byte hardware FIFO buffer to prevent data overflow and latency lags.
Integrated Analog Converter
Houses a built-in 8-channel analog voltage converter subsystem, allowing raw sensor arrays or feedback networks to map directly without auxiliary converters.
Industrial Logic Continuity
Engineered on standard 5.0V core logic constraints with native support for programmable PWM output timers, making it ideal for legacy system extensions.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Tokyo Electron Device (TED / TEL) |
| Part Number (MPN) | TE7754PF |
| Device Architecture | Expanded Parallel/Serial I/O Controller Hub Interface |
| Serial Interfaces | 2-Channel Asynchronous UART (Built-in 8-Byte FIFO/ch) |
| Parallel I/O Matrix | 8-bit Parallel Structure (Configurable into 9 distinct group ports) |
| Analog Channels | 8-Channel Built-in Analog Voltage Converter Subsystem |
| Timer Configurations | Integrated Multi-mode Programmable PWM Timer Engine |
| Operating Voltage | DC 5.0V Core Logic Constraint Rail |
| Package / Case | QFP-100 (Plastic Quad Flat Package, 16mm × 16mm body) |
| Temperature Range | 0°C to +70°C Standard Commercial Spectrum Operation |
Versatile Industrial Applications
- Factory Automation (FA): Manages distributed localized sensor inputs and pneumatic valve signals.
- Office Automation (OA): Acts as a sub-coprocessor for heavy-duty laser printer mainboards and copy engines.
- Legacy Line Extensions: Serves as a direct drop-in replacement for obsolete interface nodes with zero redesign overhead.
- Signal Routing Hubs: Bridges dense parallel data clusters onto unified micro-serial pipelines flawlessly.
Industrial Quality Protections
100% Original Sourcing: Secured directly via fully vetted global electronics franchise pipelines with absolute supply integrity.
Anti-Static Guarding: Stored and handled under strict ESD-controlled warehouse standards to protect sensitive CMOS logic cells.
Traceable Compliance: Completely backed by intensive forensic document and batch inspections before export clearance.
