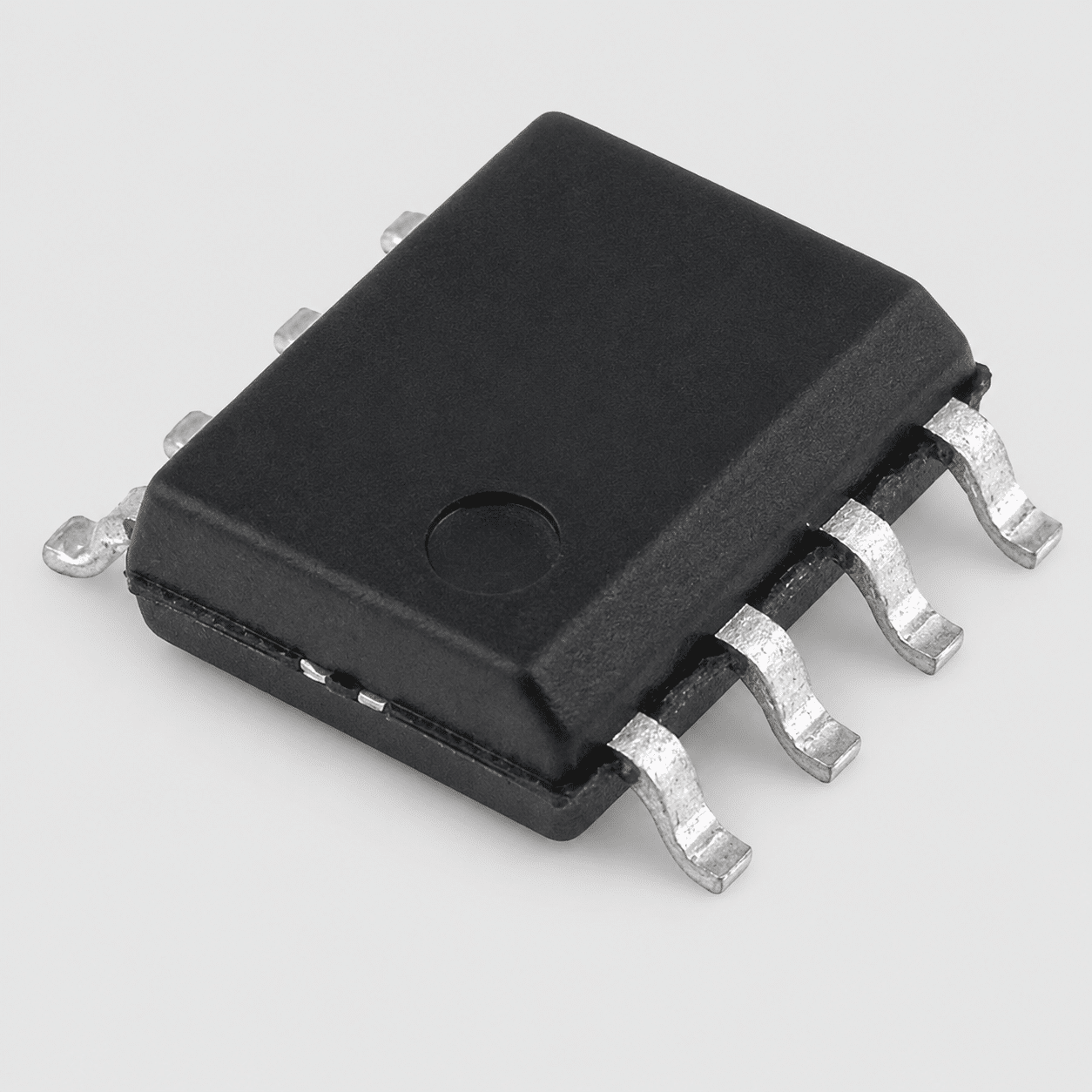

TPS5430DDAR Buck Regulator
3A Continuous Output meets 36V Wide Input Range – The Professional SWIFT™ DC-DC Converter Silicon Choice for Industrial Controller Mainboards and High-Efficiency Power Modules.
// 500kHz Fixed Frequency Built-in 110mΩ Power MOSFET SO-PowerPAD-8 Portfolio
The High-Efficiency Non-Isolated Step-Down Advantage
The TPS5430DDAR represents a premier professional SO-PowerPAD-8 packaged monolithic PWM step-down buck DC-DC converter solution engineered for space-constrained, high-throughput hardware architectures demanding absolute power conversion efficiency and wide supply rails tolerance. Built on Texas Instruments’ advanced proprietary SWIFT™ technology framework operating at a deterministic 500 kHz frequency node, this module processes high-current load lines up to 3A continuous flawlessly without excessive thermal runaway hazards or systemic performance lagging. Housed in an industry-standard 8-pin SOIC format with an integrated exposed thermal pad underneath, it secures pure, deterministic power routing loops and completely cuts off board layout overhead bottlenecks.
- Wide operating DC input voltage range from 5.5V up to 36V matching industrial bus standards safely
- Integrated high-side N-channel power MOSFET (110 mΩ typical Rdson) maximizing efficiency cleanly
- Comprehensive embedded security protection loops including overcurrent limit and thermal shutdown smoothly
Key Performance Advantages
3A Continuous Current
Supports high peak currents up to 4A, continuously driving heavy load currents safely for complex industrial mainboards and wireless modems cleanly.
95% Power Efficiency
Optimizes active power conversion parameters via low-resistance switching nodes, suppressing systemic thermal generation profiles safely.
SO-PowerPAD-8 Package
Combines standard small-outline packaging layouts with a bottom thermal metal slug, maximizing heat conduction tracks smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Texas Instruments (Premium Factory Sealed Sourcing) |
| Part Number (MPN) | TPS5430DDAR (SWIFT™ Step-Down Matrix Series) |
| Function Topology | Non-Isolated Buck Step-Down PWM Switching Regulator |
| Input Voltage Voltage | 5.5 VDC to 36 VDC Operating Range (40V Maximum Absolute) |
| Output Current Rating | 3.0 Amperes Continuous Current (Up to 4.0A Peak Execution Limit) |
| Adjustable Output Range | Down to 1.221 VDC Adjustable Fixed Threshold (via Feedback Resistors) |
| Switching Frequency | 500 kHz Fixed Internal Frequency Oscillation Mode |
| Internal Switch Resistance | 110 mΩ Integrated High-Side N-Channel Transistor |
| Package / Case Form | SO-PowerPAD-8 (8-pin SOIC Narrow Body with Exposed Bottom Thermal Slug) |
| Component Status | Production Quality Grade Active Commercial Hardware Portfolio |
Versatile Step-Down System Applications
- Industrial 12V/24V Bus Rails: Primary power choice down-stepping standard industrial DC buses cleanly into low-voltage logic lines safely.
- Automotive Electronics Tech: Delivers deterministic internal voltage management required inside fleet tracking hardware and monitors smoothly.
- High-Power Audio Amplifiers: Handles demanding switching tracks without injecting multi-frequency ripple harmonic disturbances cleanly.
- Distributed Power Gateways: Optimizes computational space allocation metrics inside networking router frameworks and base stations.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
