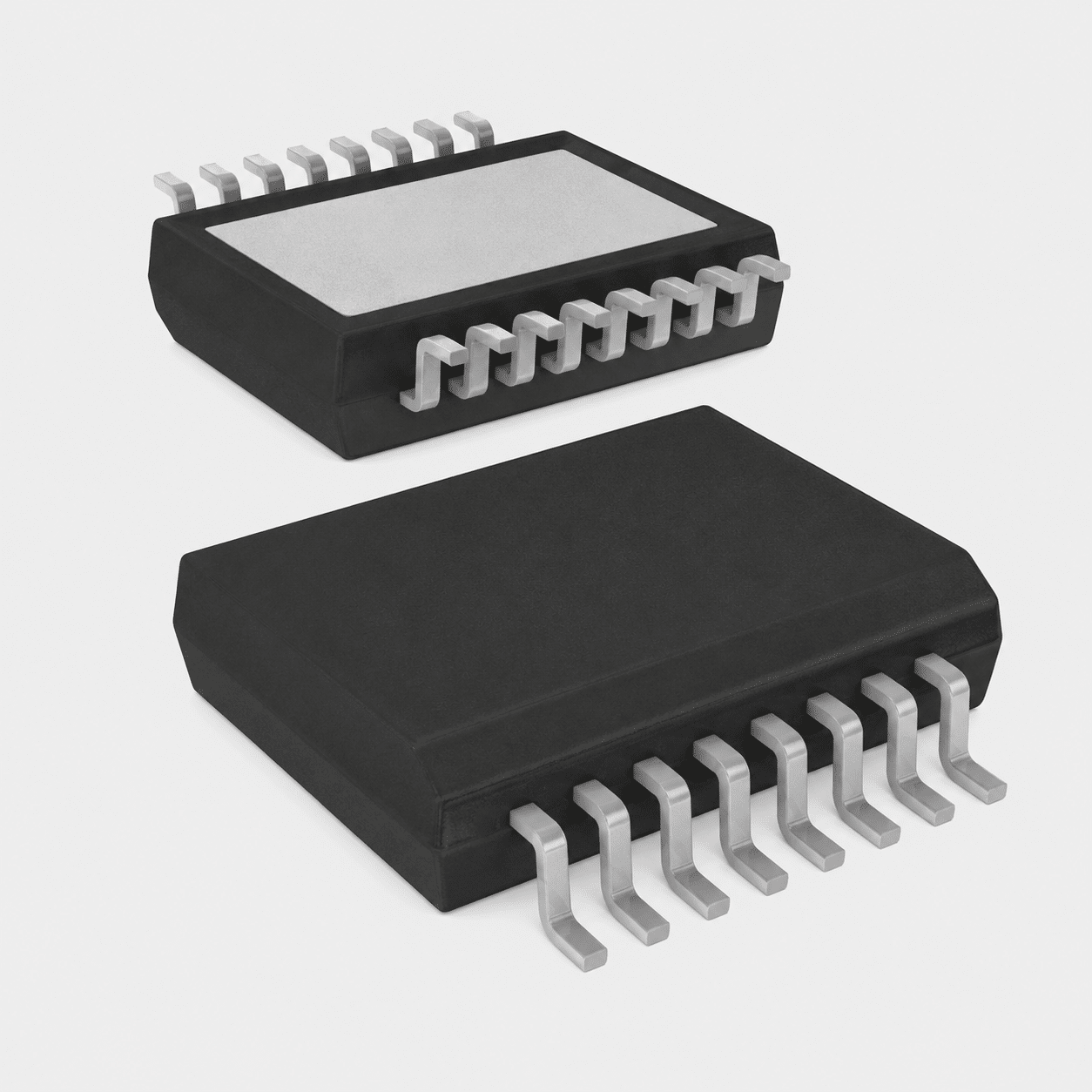

VN7016AJTR High-Side Driver
16mΩ Ultra-Low On-Resistance meets VIPower M0-7 Intelligence – The Automotive-Grade Smart High-Side Switch Silicon Choice for Advanced Body Control Modules and Intelligent Lighting Protection.
// Built-in MultiSense Diagnostic Fault Protection PowerSSO-16 Portfolio
The Smart Automotive High-Side Power Control Advantage
The VN7016AJTR represents a premier professional PowerSSO-16 packaged monolithic high-side intelligent switch power solution engineered for space-constrained, high-reliability automotive architectures demanding absolute current efficiency and complex digital diagnostics. Built on ST’s legendary VIPower M0-7 silicon technology framework, this module processes high-current load distribution lines flawlessly without thermal runway hazards or systemic performance lagging. Featuring an integrated MultiSense telemetry diagnostic node, it secures pure, deterministic load processing loops and completely cuts off hardware synchronization delays or fuse replacement overheads.
- AEC-Q100 qualified silicon architecture tailored for rugged automotive nominal 12V power supply lines safely
- Ultra-low on-state resistance (16 mΩ typical Rdson) maximizing power path layout efficiency cleanly
- Comprehensive embedded telemetry diagnostics providing proportional load current feedback and thermal fault indication smoothly
Key Performance Advantages
AEC-Q100 Automotive Grade
Engineered for zero-defect standards inside demanding engine bay environments, resisting harsh vehicular power transients and vibrations cleanly.
MultiSense Diagnostics
Natively reads analog current sensing outputs, tracking open-load alerts and output short-circuits directly into a central MCU safely.
PowerSSO-16 Footprint
Housed inside a highly compact surface-mount outline featuring an exposed thermal pad, maximizing heat conduction and saving space smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | STMicroelectronics (Premium Sealed Sourcing Line) |
| Part Number (MPN) | VN7016AJTR (VIPower M0-7 Silicon Matrix) |
| Product Category | Intelligent Monolithic High-Side Smart Switch Devices |
| Operating Supply Voltage | 4.0 VDC to 28 VDC Continuous Nominal Power Channels Range |
| Maximum On-State Resistance | 16 mΩ (Typical Monolithic Chip Value at Vcc Nominal Input) |
| Output Channel Count | 1 Channel Symmetrical High-Side SMT Distribution Array |
| Embedded Protection Nodes | Overvoltage Clamp, Thermal Shutdown, Intelligent Dynamic Current Limitation safely |
| Diagnostic Functionality | MultiSense Telemetry (Proportional current sense for real-time load analytics) |
| Package / Case Form | PowerSSO-16 package (Leaded SMT Enclosure with Bottom Thermal Exposed Slugs) |
| Component Quality Grade | AEC-Q100 Compliant Active Commercial Automotive Allocation Portfolio |
Versatile Smart Power System Applications
- Automotive Lighting Modules: Primary power choice driving halogen lamps, high-power LED strings, and automotive signal lanes safely.
- Vehicle Body Control (BCM): Delivers deterministic solid-state switching lines needed for windshield heaters, wipers, and locks smoothly.
- Industrial 12V Solid-State Switches: Handles demanding relay replacement arrays and smart power routing control circuits cleanly.
- DC Solenoid Actuators: Optimizes operational current spike profiles inside electronic vehicular valving and actuator nodes.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
