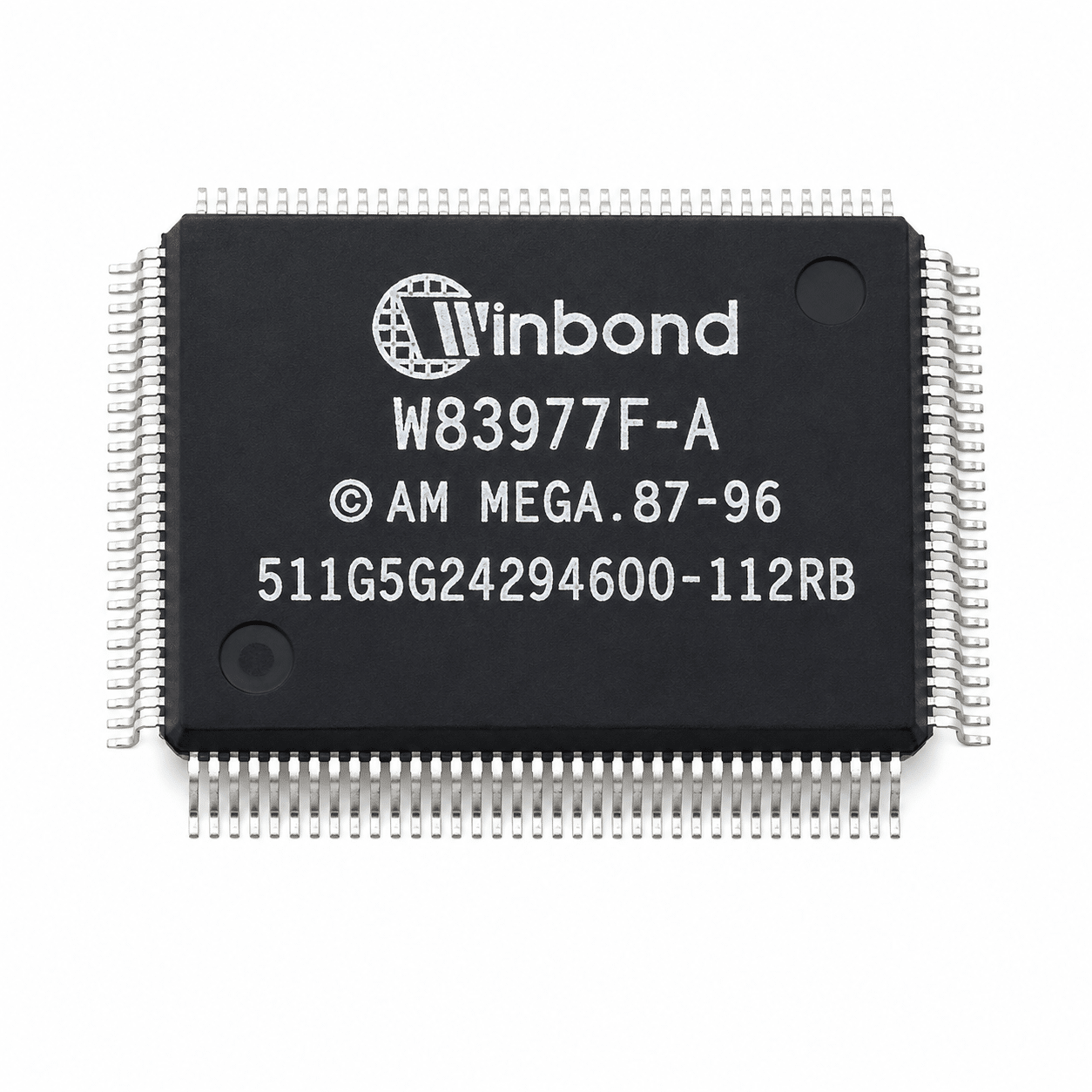

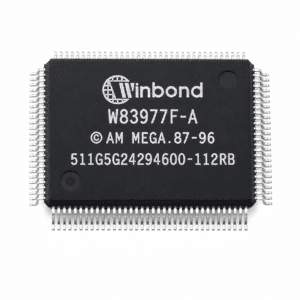

W83977F-A Super I/O Controller IC
Multi-Interface Expansion meets Stable Logic Bridging – The Professional Super I/O Controller Choice for Industrial Motherboards & Embedded IPC Systems.
// High-Integration Legacy Peripheral Matrix Portfolio
The Industrial Super I/O Advantage
The W83977F-A stands out as a highly versatile Super I/O interface hub controller developed by Winbond. Engineered specifically to streamline legacy communications on modern x86 computing lines, this single-chip logic matrix consolidates an advanced floppy disk controller, multiple high-speed 16550 UART channels, a multi-mode parallel port, and an integrated 8042-compatible keyboard/mouse controller. It delivers optimized real-time signal routing and prevents bus starvation in critical automation hardware interfaces.
- Dual full-duplex 16550 UARTs with built-in 16-byte hardware FIFO
- Supports IEEE 1284 parallel ports (ECP/EPP modes optimized)
- Rugged QFP128 geometry improving localized structural heat dispersion
Key Performance Advantages
FIFO-Buffered Serial Hub
Houses independent asynchronous serial links equipped with hardware FIFO blocks to securely regulate data routing and prevent frame transmission dropouts.
Multi-Mode Parallel Link
Fully compliant with standard IEEE 1284 parameters, allowing legacy industrial instrumentation printers to interface smoothly with zero latency bottlenecks.
Legacy System Continuity
Maintains a dedicated 8042-compatible MCU block for keyboard/mouse logic routing, providing steady long-lifecycle operations for embedded IPC mainboards.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Winbond Electronics Corporation |
| Part Number (MPN) | W83977F-A |
| Device Architecture | Super I/O Hub Controller / Multi-Interface Peripheral Hub |
| Serial Interfaces | 2-Channel 16550 UARTs with 16-Byte Hardware FIFO Subsystem |
| Parallel Interface | IEEE 1284 Bi-directional Port (Supports EPP and ECP Modes) |
| Disk Controller | Integrated Floppy Disk Drive Controller (FDC Matrix) |
| Keyboard Controller | On-Chip 8042-Compatible KBC Interface Engine |
| Package / Case Form | QFP-128 / PQFP128 (Plastic Quad Flat Package Layout) |
| Logic Supply Voltage | Standard CMOS Core Logic Constraints |
| Temperature Spectrum | Standard Industrial / Commercial Specification Operation |
Versatile Industrial Applications
- Industrial Computing (IPC): Regulates legacy COM and LPT port mappings on modern industrial computer boards.
- Automation Workstations: Coordinates localized data interaction with automated cnc machines and sensory devices.
- Legacy System Extensions: Serves as an ideal drop-in replacement layout for obsolete super I/O chips on embedded motherboards.
- Point-of-Sale (POS): Manages secure hardware peripheral loops for specialized barcode scanners and receipt printers.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
