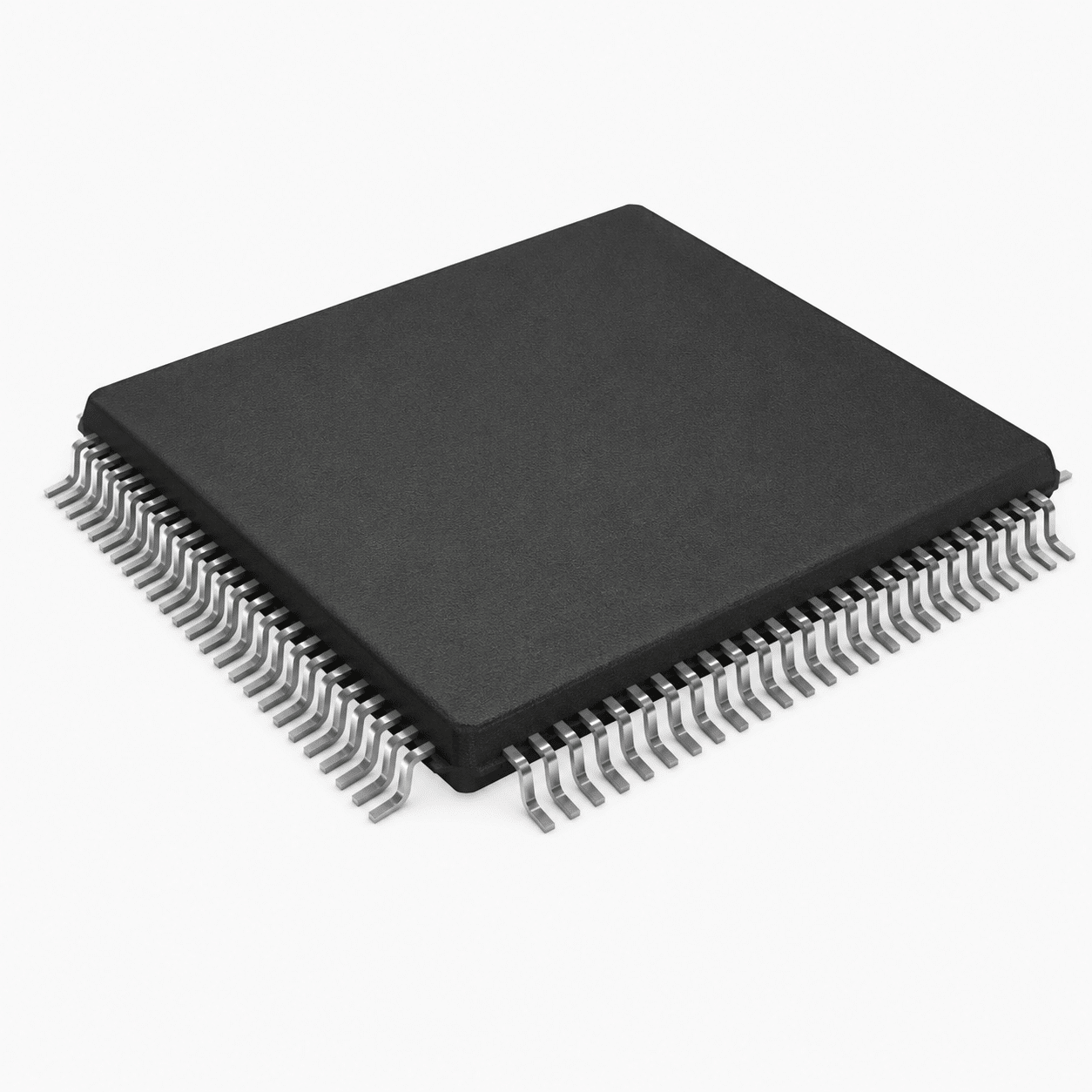

XA2C256-8VQG100Q CoolRunner-II CPLD
Ultra-Low Standby Power meets High-Speed Logic – The Professional Automotive Programmable CPLD Choice for Advanced Control Routing & Interface Bridging.
// Fast Zero Power (FZP) Advanced Technology Architecture
The CoolRunner-II Programmable Edge
The XA2C256-8VQG100Q balances non-volatile, high-density logic configuration with extreme power optimization. Engineered by AMD Xilinx under rigid automotive quality standards, it features a 256-macrocell fabric that delivers tight, deterministic timing paths across 80 high-performance I/O ports. It eliminates the standby power penalization typical of traditional CPLD devices, making it perfect for modern infotainment, telemetry routing, and mission-critical safety controllers.
- 256 Configurable Macrocells with advanced logic mapping flexibility
- 80 User I/O pins optimized for multi-voltage interface level shifting
- Fast Zero Power (FZP) design dramatically drops standby current parameters
Key Performance Advantages
Total Standby Efficiency
Utilizes a specialized CMOS EEPROM layout requiring mere microamps during inactive cycles, minimizing localized board heating and battery leakage risks.
Deterministic Timing
Built on a rigid, predictable pin-to-pin propagation delay architecture, preventing internal signal skew across dense logic routing configurations.
AEC-Q100 Compliance
Fully certified for extreme ambient conditions, guaranteeing high-grade operational security against harsh vibrations and widespread thermal shocks.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | AMD Xilinx |
| Part Number (MPN) | XA2C256-8VQG100Q |
| Device Family | CoolRunner-II Automotive CPLD Series |
| Number of Macrocells | 256 Macrocells |
| Number of User I/Os | 80 Configurable I/O Ports |
| Core Supply Voltage | 1.8V Standard Internal Core Logic |
| I/O Bank Voltages | Supports 1.5V, 1.8V, 2.5V, and 3.3V Logic Levels |
| Package / Case | VQFP-100 / VQG100 (Very Thin Quad Flatpack Package) |
| Speed Grade Designation | -8 Speed Optimization Spectrum |
| Quality Certification | AEC-Q100 Automotive Temperature Grade Q (-40°C to +105°C) |
Versatile Edge-Logic Applications
- Automotive Networks: Manages localized sensor data collection, body control units, and instrument clustering.
- Interface Level-Shifting: Bridges diverse legacy protocol rails into modern 1.8V core processor pipelines smoothly.
- System Glue Logic: Consolidates disparate discrete logic gates into a single, un-modifiable non-volatile chip layout.
- Industrial Machinery: Provides fast, deterministic state-machine handling for vibration-heavy motor synchronization.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise channels with absolute anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom standards.
Full Batch Traceability: Fully verified by intensive certificate analysis and rigorous documentation review prior to delivery.
