XAZU3EG-1SFVA625I Zynq UltraScale+ MPSoC
Multi-Core ARM Processing meets UltraScale+ Logic – The Professional Automotive Heterogeneous MPSoC Choice for Autonomous Control & System Integration.
// Quad-Core ARM Cortex-A53 & 154K Logic Elements Fabric
The Heterogeneous MPSoC Processing Edge
The XAZU3EG-1SFVA625I represents a premier flagship solution for logic-intensive embedded engineering systems requiring multi-processor orchestration and custom computing fabric. Engineered by AMD Xilinx under rigid automotive quality standards, this Zynq UltraScale+ MPSoC unifies a powerful quad-core ARM Cortex-A53 application platform, a dual-core Cortex-R5 real-time coprocessor, and a Mali-400 GPU with 154K programmable logic elements. Housed in an optimized SFVA625 footprint, it delivers massive multi-threaded data transit and deterministic logic processing without external bus starvation risks.
- Quad-core ARM Cortex-A53 up to 1.2GHz for heavy system application tasks
- 154,350 high-efficiency Logic Cells for custom hardware routing blocks
- Integrated hardware security, encryption engines, and multi-frequency global clock networks
Key Performance Advantages
Heterogeneous Processing
Blends robust high-level OS execution, hardware real-time determinism via dual Cortex-R5, and dedicated 3D graphics rendering engines onto one single chip fabric.
154K UltraScale+ Fabric
Houses a dense programmable array backed by high-capacity Block RAM and UltraRAM modules, streaming raw sensor telemetry clusters with zero latency stalls.
AEC-Q100 Automotive I
Fully verified for harsh ambient thresholds (-40°C to +100°C), locking exceptional system-level runtime security against intensive vehicle shocks and EMI.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | AMD Xilinx |
| Part Number (MPN) | XAZU3EG-1SFVA625I |
| Device Architecture | Zynq UltraScale+ MPSoC (EG Series, Advanced Heterogeneous Processing) |
| Application Processor | Quad-core ARM Cortex-A53 (Up to 1.2GHz with NEON Extensions) |
| Real-Time Processor | Dual-core ARM Cortex-R5 (Up to 533MHz for deterministic control) |
| Graphics Processor (GPU) | ARM Mali-400 MP2 (Integrated 2D/3D geometry rendering engine) |
| Programmable Logic Elements | 154,350 Logic Elements (UltraScale+ System Fabric) |
| Total Embedded Block RAM | 7.6 Mbits System Block memory |

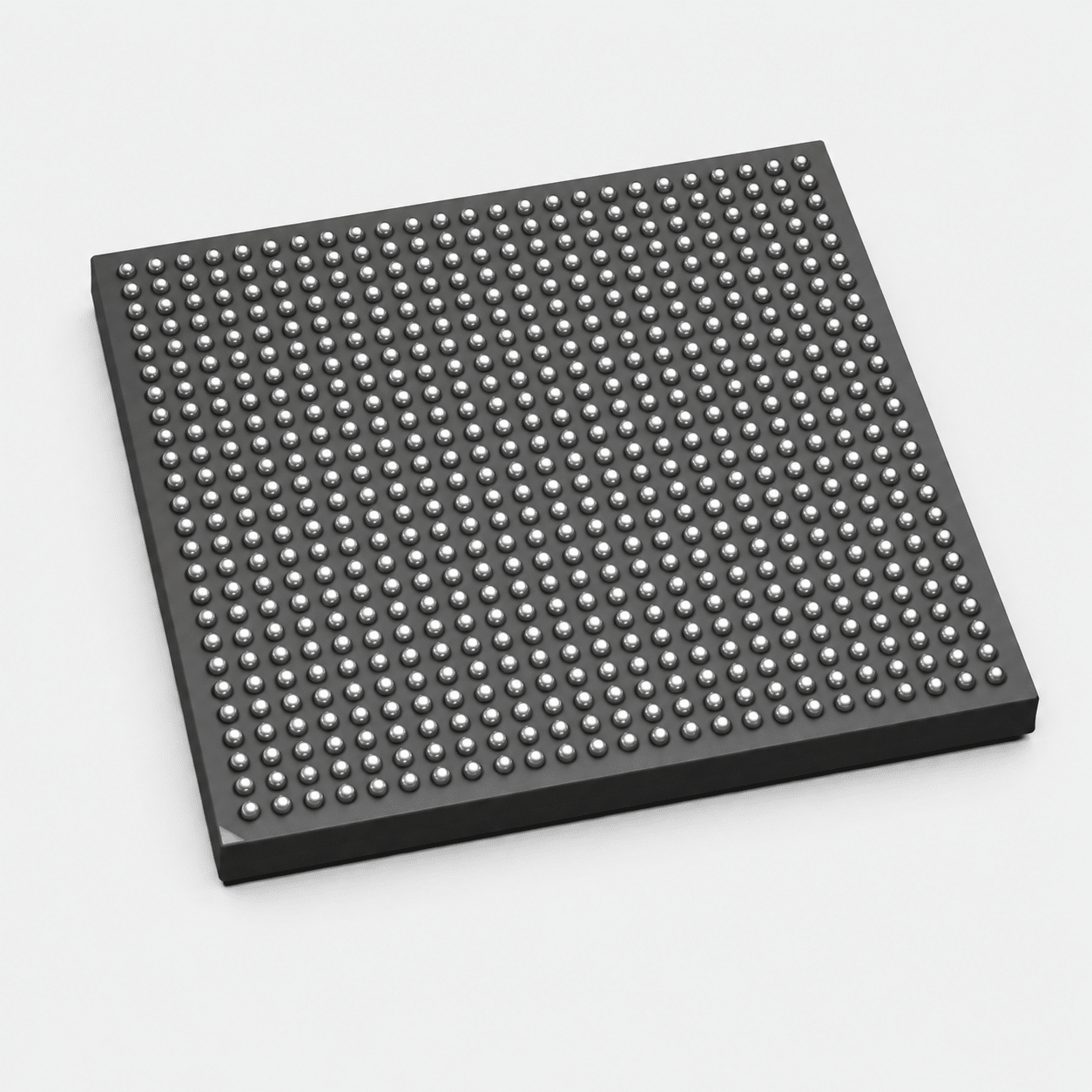

| Package / Case Form | FCBGA-625 / SFVA625 Footprint (Fine-Pitch Flip-Chip Ball Grid Array, 21mm x 21mm) |
| Quality / Temperature Grade | Automotive XA Grade Industrial I Range (-40°C to +100°C) |
Versatile Hardware Applications
- Automotive ADAS Frameworks: Real-time surround-view camera processing, sensory fusion networks, and object detection.
- Industrial Internet of Things (IIoT): Functions as a multi-protocol gateway node combining heavy edge processing with hardware custom security.
- High-Speed Instrumentation: Real-time telemetry tracking, high-frequency bus protocol translation, and digital signal matrices.
- Military & Aviation Computing: Complex secure processing loops, deterministic state-machine handling, and multi-device bridging systems.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
