The Spartan-6 Architectural Advantage

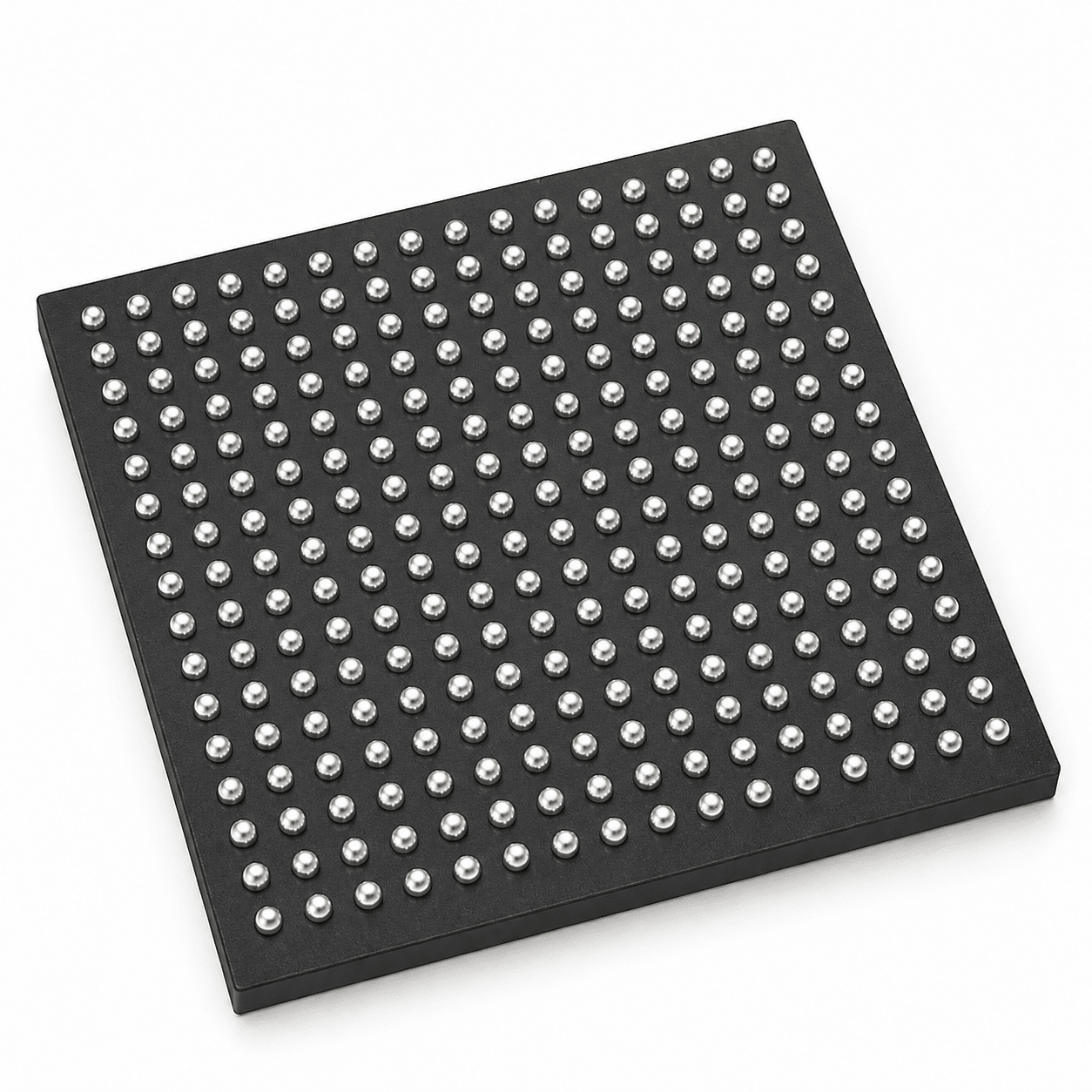

The XC6SLX9-2FTG256C represents a premier solution for high-volume, power-conscious, and cost-optimized hardware layout designs. Engineered by AMD Xilinx on a mature, low-power 45-nm copper silicon process, this Spartan-6 LX FPGA offers 9,152 flexible logic cells paired with a 576 Kbits internal block RAM matrix. Housed in a dense, fine-pitch FTGB256 package footprint, it delivers exceptional parallel processing throughput across 186 configurable user I/O ports, successfully preventing interface bottlenecks inside telecommunication routers, custom PCI interfaces, and factory automation boards.

• 9,152 High-efficiency Logic Cells (LEs) for custom hardware logic mapping
• 186 Configurable User I/O pins supporting independent multi-voltage rail drive
• On-chip digital clock managers (DCMs) and phase-locked loops (PLLs) for absolute timing sync

Advanced Power Efficiency

Built on a low-power 45-nm dual-oxide process node, minimizing static and dynamic power drain while effectively capping localized logic board heat generation.

576Kb Block RAM Matrix

Houses dense integrated memory blocks that allow smooth dual-port FIFO data buffering, custom parameters caching, and deterministic execution speeds.

High Pin-to-Logic Ratio

Expands external interface capabilities with 186 user-configurable I/O pins, backed by multi-frequency global clock loops to stabilize wide bus interactions.
