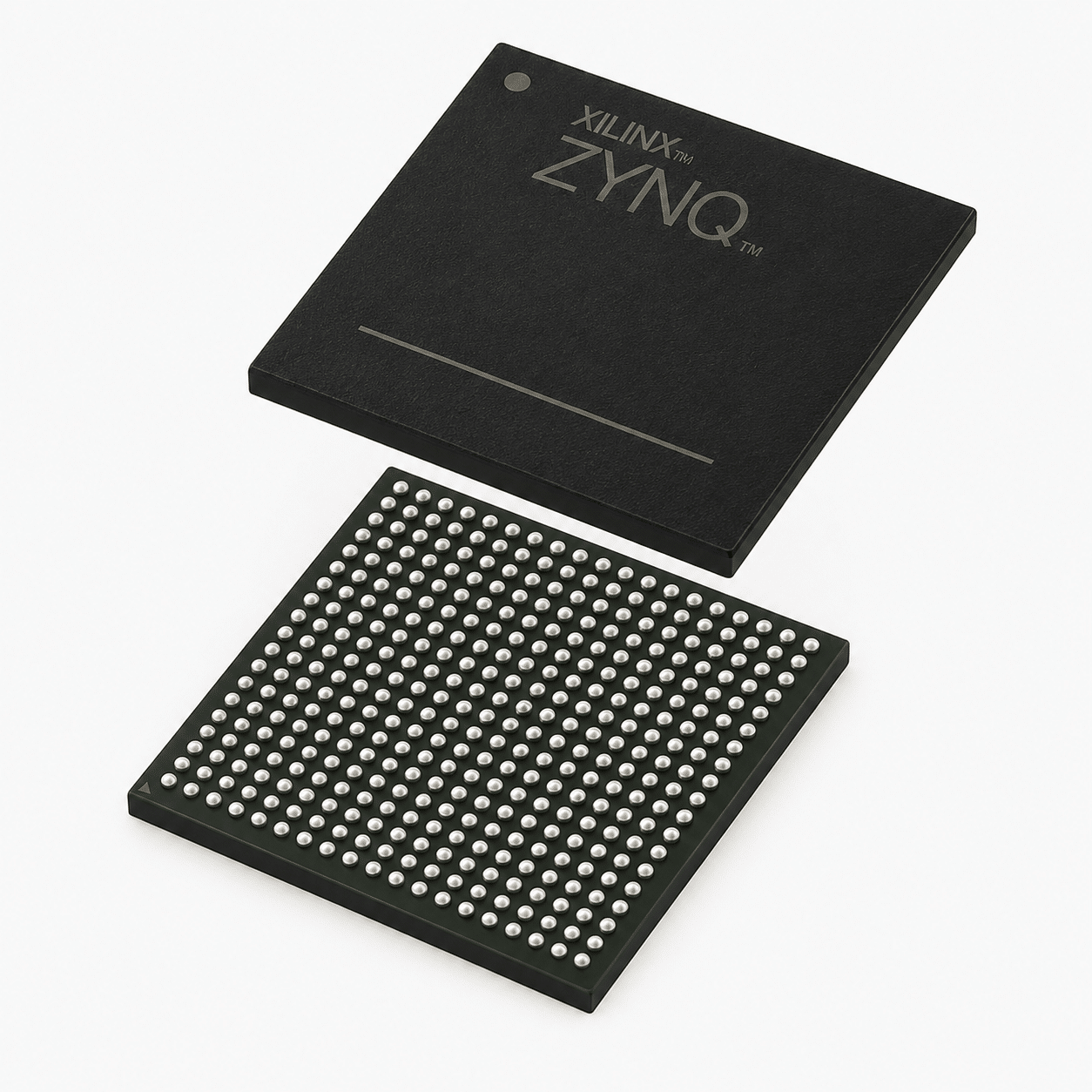

XC7Z020-1CLG400C Zynq-7000 SoC IC
Dual-Core ARM Cortex-A9 meets 28nm Programmable Logic – The Professional Heterogeneous System-on-Chip Choice for Edge Computing & Embedded Intelligence.
// Highly Flexible Dual ARM Core & 85K Logic Cells Portfolio
The Heterogeneous ARM + FPGA Advantage
The XC7Z020-1CLG400C represents a premier industry standard for high-performance embedded systems requiring software flexibility combined with hardware-accelerated execution paths. Engineered by AMD Xilinx on a mature 28-nm programmable fabric, this Zynq-7000 All Programmable SoC unifies a powerful dual-core ARM Cortex-A9 processor system (PS) with 85,000 Artix-7 programmable logic cells (PL). Housed in a dense, high-pin-count CSBGA400 package, it secures high-bandwidth data transit across 130 programmable I/O ports without external bus starvation risks.
- Dual-core ARM Cortex-A9 with integrated NEON extensions for heavy software tasks
- 85,000 high-efficiency Artix-7 logic cells for hardware-accelerated processing
- On-chip high-speed AXI interfaces connecting processing system and logic fabric
Key Performance Advantages
Heterogeneous Core
Integrates complete operating system (OS) software application handling with non-volatile hardware logic acceleration blocks onto a single silicon chip fabric.
4.4Mb Embedded RAM
Houses extensive block memory and customized FIFO structures, streaming raw telemetry logs and processing display buffering with deterministic speeds.
28nm High Efficiency
Built on a power-optimized 28-nm fabric process architecture, effectively dropping static leakage current and minimizing localized thermal board heating indicators.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | AMD Xilinx |
| Part Number (MPN) | XC7Z020-1CLG400C |
| Device Family | Zynq-7000 All Programmable SoC Architecture |
| Processor Architecture | Dual-Core ARM Cortex-A9 MPCore with CoreSight |
| Programmable Logic Elements | 85,000 Logic Cells (Equivalent Artix-7 System Fabric) |
| Total Block RAM | 4.4 Mbits (Integrated High-Speed Memory Matrix) |
| Number of User I/Os | 130 Configurable Programmable User I/O Ports |
| Package / Case Form | LFBGA-400 / CLG400 Footprint (Chip Scale Ball Grid Array, 17mm x 17mm) |
| Speed Grade Designation | -1 Speed grade rating (Standard logic constraints) |
| Temperature Window | 0°C to +85°C Commercial Operational Spectrum Compliance |
Versatile Heterogeneous Applications
- Industrial Internet of Things (IIoT): Integrates robust software communication protocols with customized hardware logic controls.
- Embedded Vision Systems: Handles real-time edge processing, image filtering matrices, and camera data serialization.
- Smart Edge Gateways: Manages high-speed data stream bridging, multi-bus routing, and complex protocol translations.
- System Controller Consolidation: Merges multiple disparate microcontrollers and logic boards onto a single secure chip canvas.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
