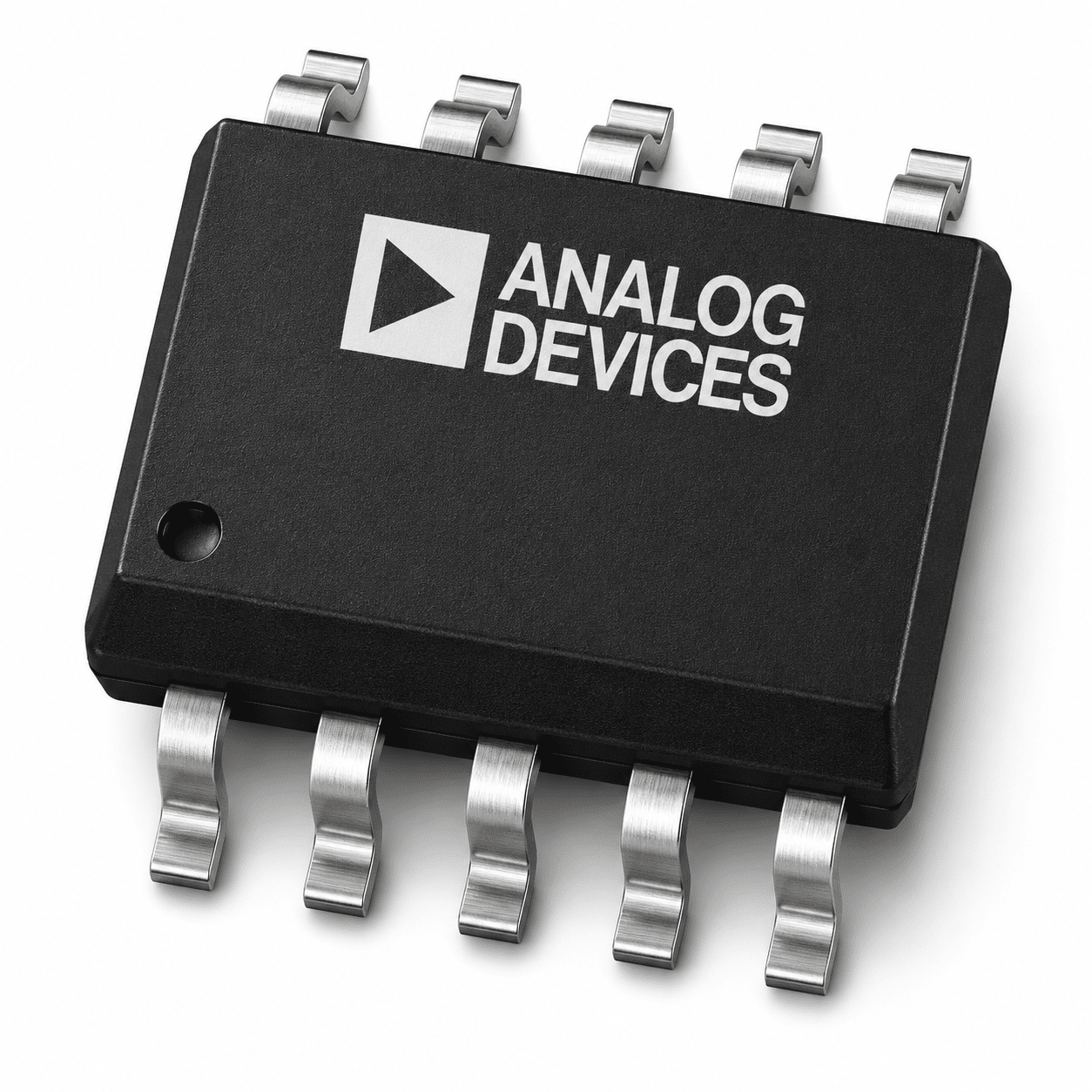

AD8479ARZ (Very-High Common-Mode Voltage Difference Amplifier)

Unity-gain difference amplifier with up to ±600 V common-mode capability under specified conditions. No galvanic isolation; 8-lead SOIC, −40°C to +125°C. Send the complete ARZ code and quantity for an RFQ.

SKU: AD8479ARZ Category: Brand:

Differential measurement at high common-mode voltage

AD8479ARZ is a fixed-unity-gain difference amplifier for differential measurements in the presence of common-mode voltages up to ±600 V, within the data-sheet operating conditions.

It does not provide galvanic isolation. Use it only where the system architecture permits a conductive measurement path and where insulation, protection and PCB spacing are designed separately.

Technical specifications

Parameters are summarized from the Analog Devices data sheet linked below. Typical performance is not a guaranteed limit; verify the specified supply, temperature, clock and signal conditions.

Manufacturer Analog Devices
Ordering code AD8479ARZ
Function Precision difference amplifier
Gain Fixed at 1
Common-mode capability Up to ±600 V; supply/output conditions apply
Operating dual supplies ±2.5–±18 V
Bandwidth 310 kHz typical
Output Rail-to-rail; load-dependent headroom
Package 8-lead SOIC, R-8
Temperature −40°C to +125°C

Applications

  • High common-mode current-shunt measurement where galvanic isolation is not required.
  • Battery-cell and power-supply voltage monitoring within the specified input/output range.
  • Motor-control measurement circuitry with appropriate transient protection.

Selection and compatibility guide

Distinguish common mode from differential input

Evaluate the input difference, reference pins and output swing as well as the common-mode voltage. The ±600 V rating is not an unrestricted differential measurement span.

Decide whether isolation is required

This amplifier has no isolation barrier. Review system voltage, grounding, protection and PCB clearance before selecting the topology.

Validate frequency-dependent rejection

Check CMRR and transient response in the actual signal band. Fast common-mode edges and parasitic coupling can create errors beyond a dc calculation.

Lifecycle and component sourcing

Include the full ordering code, silicon revision, required packing and any programming requirements in the RFQ. Confirm the offered condition, lot/date codes and available traceability before commercial approval.

  • Confirm the complete ordering code, lot/date-code restrictions and required packing.
  • Agree inspection scope, acceptance criteria and traceability documents for the offered lot.
  • Confirm availability, price and lead time in the quotation before ordering.

Request pricing and availability

Use Add to RFQ above for AD8479ARZ and your quantity. Use Quick RFQ for a multi-part BOM.

  • Complete part number and required quantity
  • Target delivery date and destination
  • Packing, date-code, inspection and traceability requirements

Sending an RFQ does not place a paid order. Price, offered condition and delivery terms are confirmed in the quotation.
