DA14699-00000HR2 (Multi-Core Bluetooth 5.2 System-on-Chip)

Bluetooth LE SoC with a 96 MHz Cortex-M33, 512 kB RAM and integrated system power management. 100-ball VFBGA HR2 reel variant. Send quantity, packing and delivery requirements for an RFQ.

SKU: DA14699-00000HR2 Category: Brand:

Bluetooth LE application processing with integrated power management

DA14699-00000HR2 is a Bluetooth LE SoC with a 96 MHz Arm Cortex-M33 application core and 512 kB RAM. It combines wireless processing with a system power-management unit and battery-charging functions for rechargeable connected products.

The HR2 ordering variant uses a 100-ball VFBGA. Bluetooth 5.2 core compliance includes optional features, so confirm the exact PHY, direction-finding and software requirements rather than assuming every Bluetooth feature is supported.

Technical specifications

Key specifications and ordering status are summarized from the Renesas product and technical documents linked below. Check the applicable electrical conditions and full ordering suffix before design approval.

Manufacturer Renesas Electronics
Ordering code DA14699-00000HR2
Application CPU / maximum clock Arm Cortex-M33 / 96 MHz
RAM / ROM 512 kB / 128 kB
Wireless Bluetooth LE 5.2 core specification plus supported optional features
System power management Integrated PMU, SIMO buck DC-DC and battery-charging functions

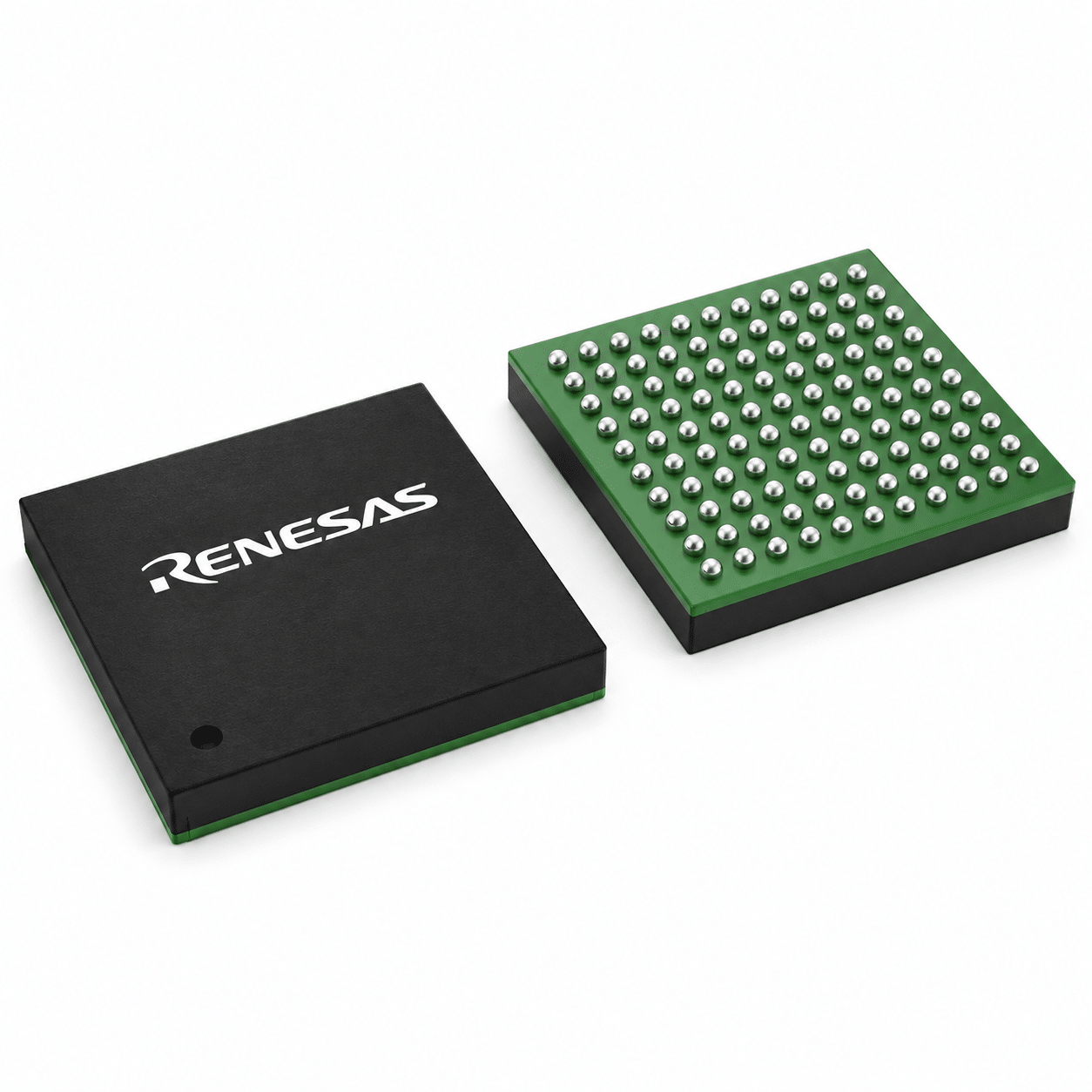

Package 100-ball VFBGA; 5 × 5 mm footprint
Carrier Reel for the HR2 ordering code
Ordering temperature reference 0°C to +70°C on the Renesas HR2 product entry; verify the full electrical conditions

Applications

  • Rechargeable wearables and connected user interfaces using a validated PMU and battery design.
  • Wireless sensor or tracking products with application firmware and peripherals matched to the supported Bluetooth feature set.

Selection and compatibility guide

Match the optional wireless features

Confirm the required PHY, data rate, advertising and direction-finding roles against the exact device and SDK. A Bluetooth version label alone is insufficient.

Review the battery circuit

Validate cell type, charging limits, thermistor/temperature controls and external components. Integrated charging does not remove system-level battery design requirements.

Budget memory and package resources

Check firmware, boot storage, RAM retention and pin multiplexing. Match HR2 packing, temperature conditions and the VFBGA land pattern to the product.

Lifecycle and component sourcing

Include the full ordering code, silicon revision, required packing and any programming requirements in the RFQ. Confirm the offered condition, lot/date codes and available traceability before commercial approval.

  • Confirm the complete ordering code, lot/date-code restrictions and required packing.
  • Agree inspection scope, acceptance criteria and traceability documents for the offered lot.
  • Confirm availability, price and lead time in the quotation before ordering.

Request pricing and availability

Use Add to RFQ above for DA14699-00000HR2 and your quantity. Use Quick RFQ for a multi-part BOM.

  • Complete part number and required quantity
  • Target delivery date and destination
  • Packing, date-code, inspection and traceability requirements

Sending an RFQ does not place a paid order. Price, offered condition and delivery terms are confirmed in the quotation.
