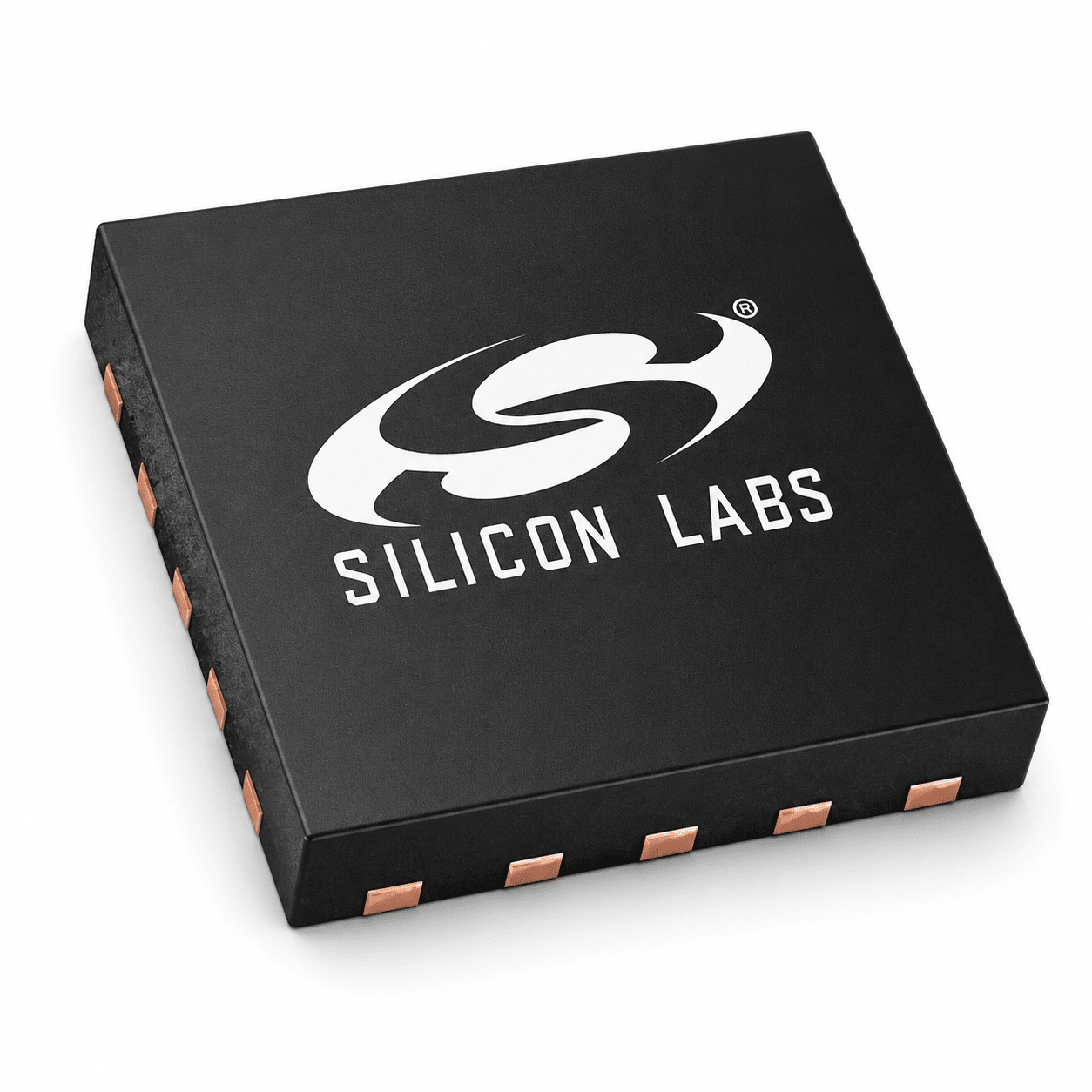

EFM8BB51F16G-C-QFN20R (50 MHz 8-Bit Microcontroller)

Busy Bee 51 MCU with 16 kB Flash, 1,280 bytes RAM, 16 GPIO and a 12-bit ADC. 1.8–5.5 V supply and complementary PWM with dead-time insertion. QFN20, G temperature grade. Request an RFQ.

SKU: EFM8BB51F16G-C-QFN20R Category: Brand:

Wide-supply 8051 control with PWM and configurable logic

EFM8BB51F16G-C-QFN20R is a Busy Bee 51 microcontroller with a 50 MHz 8051-compatible core, 16 kB Flash and 1,280 bytes of RAM. It operates from a 1.8–5.5 V supply and provides 16 multifunction GPIO.

The device combines a 12-bit ADC, a three-channel PWM engine with complementary outputs and dead-time insertion, and four configurable logic units. These resources can reduce simple timing and glue-logic work in firmware when the pin allocation fits the design.

Technical specifications

Specifications are summarized from the manufacturer documents linked below. Use the complete ordering code and the applicable datasheet revision when validating a design.

Manufacturer Silicon Labs
Ordering code EFM8BB51F16G-C-QFN20R
Core / maximum clock CIP-51, 8051-compatible / 50 MHz
Flash / RAM 16 kB / 1,280 bytes
Supply 1.8–5.5 V; datasheet operating conditions apply
Digital I/O 16 GPIO
ADC 12-bit, up to 612 ksps under datasheet conditions
PWM 3-channel PCA/PWM plus 3-channel PWM engine with dead-time insertion
Configurable logic 4 configurable logic units
Serial interfaces 2 UARTs, SPI and SMBus/I2C
Package 20-pin QFN
Temperature / revision G: −40°C to +85°C; C silicon revision
Programming / debug C2

Applications

  • LED/lighting and appliance-control logic using PWM and local analog measurements.
  • Power-tool or motor-control interfaces using external drivers, with timing and protection validated for the finished system.

Selection and compatibility guide

Budget the smaller RAM

This 16 kB Flash variant has 1,280 bytes RAM, not the 2,304 bytes of EFM8BB2. Check stack, serial buffers and control-state storage.

Validate complementary PWM

Confirm pin routing, polarity, dead time and startup states against the external driver. On-chip PWM features do not replace system protection and hardware validation.

Keep grade and footprint explicit

G is the −40°C to +85°C grade. Match the QFN20 footprint and C revision to the board, firmware and assembly requirements.

Lifecycle and component sourcing

Include the full ordering code, silicon revision, required packing and any programming requirements in the RFQ. Confirm the offered condition, lot/date codes and available traceability before commercial approval.

  • Confirm the complete ordering code, lot/date-code restrictions and required packing.
  • Agree inspection scope, acceptance criteria and traceability documents for the offered lot.
  • Confirm availability, price and lead time in the quotation before ordering.

Request pricing and availability

Use Add to RFQ above for EFM8BB51F16G-C-QFN20R and your quantity. Use Quick RFQ for a multi-part BOM.

  • Complete part number and required quantity
  • Target delivery date and destination
  • Packing, date-code, inspection and traceability requirements

Sending an RFQ does not place a paid order. Price, offered condition and delivery terms are confirmed in the quotation.
