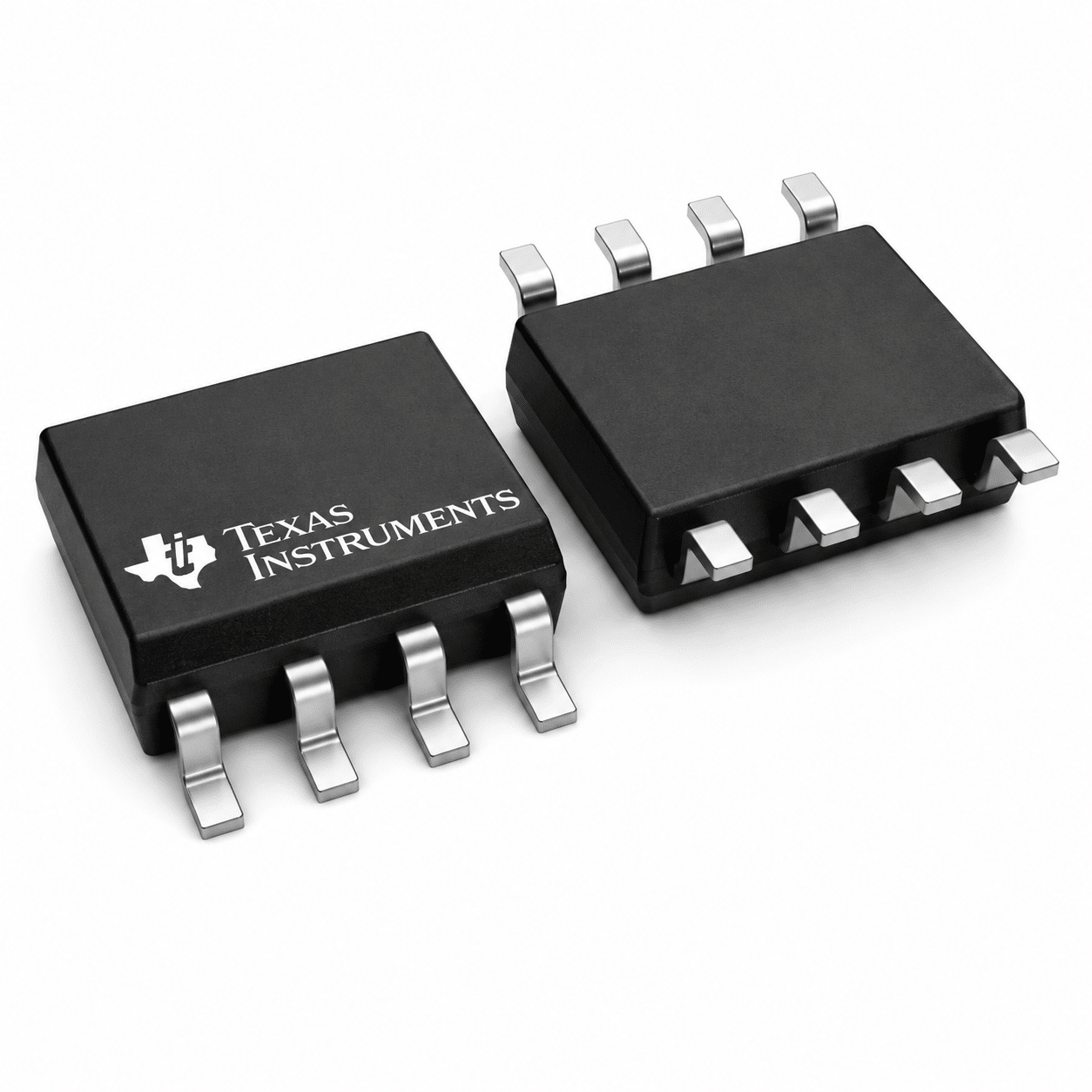

ISO7721QDRQ1 Automotive Dual-Channel Digital Isolator
The ISO7721QDRQ1 is an automotive, reinforced dual-channel digital isolator with one forward and one reverse channel. It supports data rates up to 100 Mbps, a 2.25 V to 5.5 V supply range and -40°C to 125°C operation in an 8-pin SOIC package.
What ISO7721QDRQ1 Is Designed to Do
The ISO7721QDRQ1 is an automotive, reinforced dual-channel digital isolator with one forward and one reverse channel. It supports data rates up to 100 Mbps, a 2.25 V to 5.5 V supply range and -40°C to 125°C operation in an 8-pin SOIC package. Final suitability depends on the complete circuit, software, thermal, mechanical, qualification and lifecycle requirements.
For sourcing, the base family name is not enough. The full ISO7721QDRQ1 ordering code, package, packing format, revision or grade, source condition and required inspection evidence should be confirmed against the actual order.
- Channels / direction: 2 channels, 1 forward and 1 reverse
- Maximum data rate: 100 Mbps
- Isolation rating: 3,000 VRMS for D package per UL 1577
Key Selection Characteristics
Channels / direction: 2 channels, 1 forward and 1 reverse
This capacity or architecture detail helps determine whether the device fits the processing, storage, conversion or channel requirements of the target design.
Maximum data rate: 100 Mbps
Use this performance point to confirm timing, throughput, interface compatibility and system-level margin before selecting the ordering code.
Isolation rating: 3,000 VRMS for D package per UL 1577
This verified characteristic helps identify the intended device variant and should be reviewed together with the complete electrical, mechanical and lifecycle requirements.
Technical Specifications
| Parameter | Verified Identification Detail |
|---|---|
| Manufacturer | Texas Instruments |
| Part Number (MPN) | ISO7721QDRQ1 |
| Component Type | Automotive Dual-Channel Digital Isolator |
| Channels / direction | 2 channels, 1 forward and 1 reverse |
| Maximum data rate | 100 Mbps |
| Isolation rating | 3,000 VRMS for D package per UL 1577 |
| Supply voltage | 2.25 V to 5.5 V |
| Typical propagation delay | 11 ns |
| Typical CMTI | ±100 kV/µs |
| Operating temperature | -40°C to 125°C |
| Package | 8-pin SOIC (D) |
| Lifecycle / Status | Active |
Typical Application Directions
- Automotive signal isolation — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Isolated communication interfaces — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Inverter, charger and industrial control systems — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
Order-Specific Procurement Review
Exact identity: Confirm the complete manufacturer part number, suffix, package, grade, packing format and acceptable alternatives.
Inspection evidence: Agree the required label, packaging, visual, traceability or additional test evidence before release.
Commercial and delivery terms: Review offered quantity, source condition, date or lot information, lead time, destination and shipping documents for the actual order.
Send ISO7721QDRQ1, quantity, target date, destination and evidence requirements.
Technical reference: manufacturer product page or datasheet.
Specifications support identification and sourcing review. Confirm the latest manufacturer documentation, complete ordering code and application requirements before design release or purchase.
