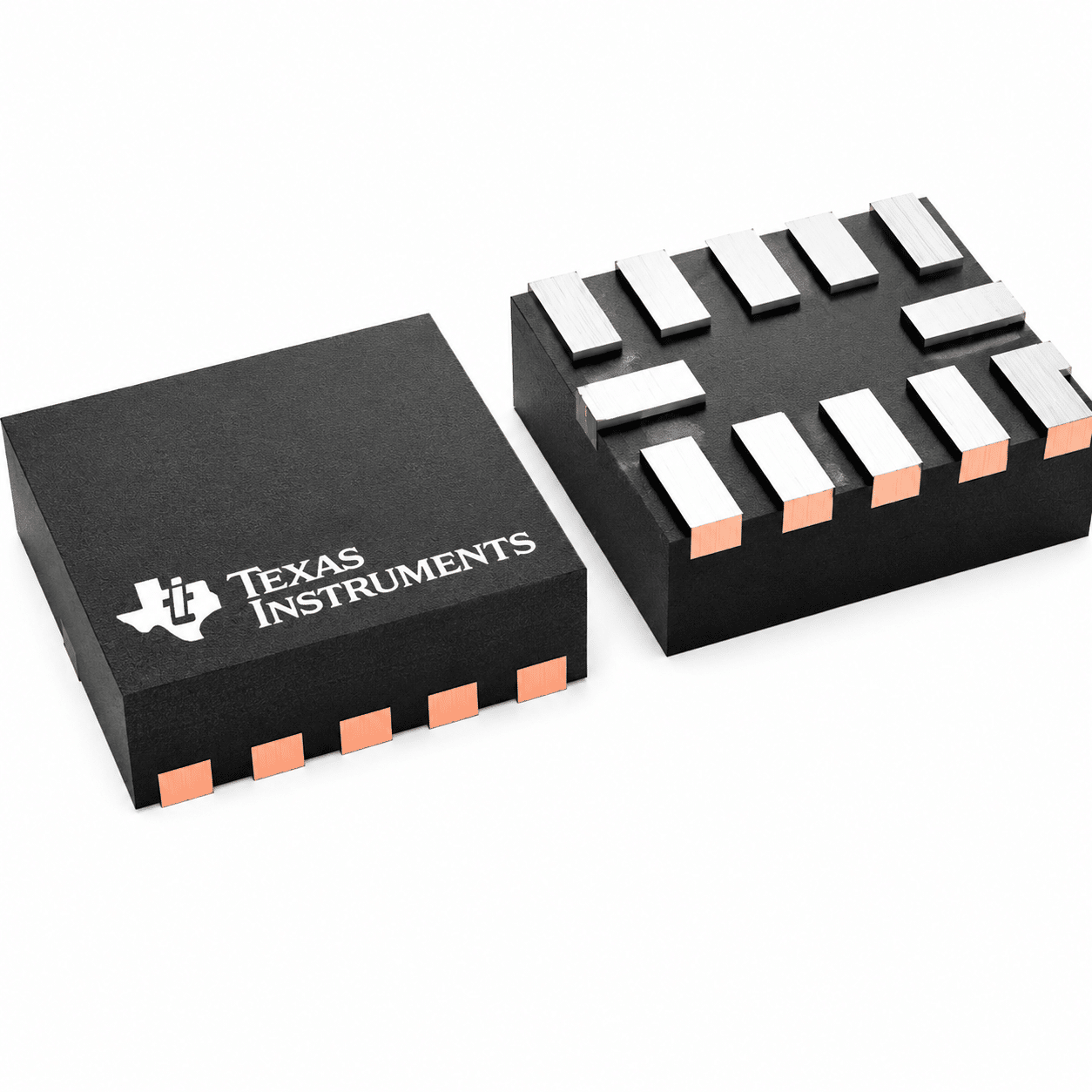

TUSB211QRWBRQ1 Automotive USB 2.0 Signal Conditioner
The TUSB211QRWBRQ1 is an automotive USB 2.0 high-speed signal conditioner intended to restore signal quality in lossy channels. It supports 480 Mbps USB 2.0 links from a 3.3 V supply in a compact 12-pin X2QFN package.
What TUSB211QRWBRQ1 Is Designed to Do
The TUSB211QRWBRQ1 is an automotive USB 2.0 high-speed signal conditioner intended to restore signal quality in lossy channels. It supports 480 Mbps USB 2.0 links from a 3.3 V supply in a compact 12-pin X2QFN package. Final suitability depends on the complete circuit, software, thermal, mechanical, qualification and lifecycle requirements.
For sourcing, the base family name is not enough. The full TUSB211QRWBRQ1 ordering code, package, packing format, revision or grade, source condition and required inspection evidence should be confirmed against the actual order.
- Function: USB 2.0 high-speed signal conditioner
- USB data rate: Up to 480 Mbps
- Supply voltage: 3.3 V nominal
Key Selection Characteristics
Function: USB 2.0 high-speed signal conditioner
This verified characteristic helps identify the intended device variant and should be reviewed together with the complete electrical, mechanical and lifecycle requirements.
USB data rate: Up to 480 Mbps
Use this performance point to confirm timing, throughput, interface compatibility and system-level margin before selecting the ordering code.
Supply voltage: 3.3 V nominal
Use this electrical characteristic to check operating margin, switching conditions, thermal loading and protection requirements in the complete circuit.
Technical Specifications
| Parameter | Verified Identification Detail |
|---|---|
| Manufacturer | Texas Instruments |
| Part Number (MPN) | TUSB211QRWBRQ1 |
| Component Type | Automotive USB 2.0 Signal Conditioner |
| Function | USB 2.0 high-speed signal conditioner |
| USB data rate | Up to 480 Mbps |
| Supply voltage | 3.3 V nominal |
| Channels | Single USB 2.0 channel |
| Package | 12-pin X2QFN (RWB) |
| Qualification | Automotive / AEC-Q100 variant |
| Lifecycle | Obsolete |
Typical Application Directions
- Automotive infotainment USB links — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Long or lossy USB 2.0 channels — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Embedded host-to-device connections — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
Order-Specific Procurement Review
Exact identity: Confirm the complete manufacturer part number, suffix, package, grade, packing format and acceptable alternatives.
Inspection evidence: Agree the required label, packaging, visual, traceability or additional test evidence before release.
Commercial and delivery terms: Review offered quantity, source condition, date or lot information, lead time, destination and shipping documents for the actual order.
Send TUSB211QRWBRQ1, quantity, target date, destination and evidence requirements.
Technical reference: manufacturer product page or datasheet.
Specifications support identification and sourcing review. Confirm the latest manufacturer documentation, complete ordering code and application requirements before design release or purchase.
