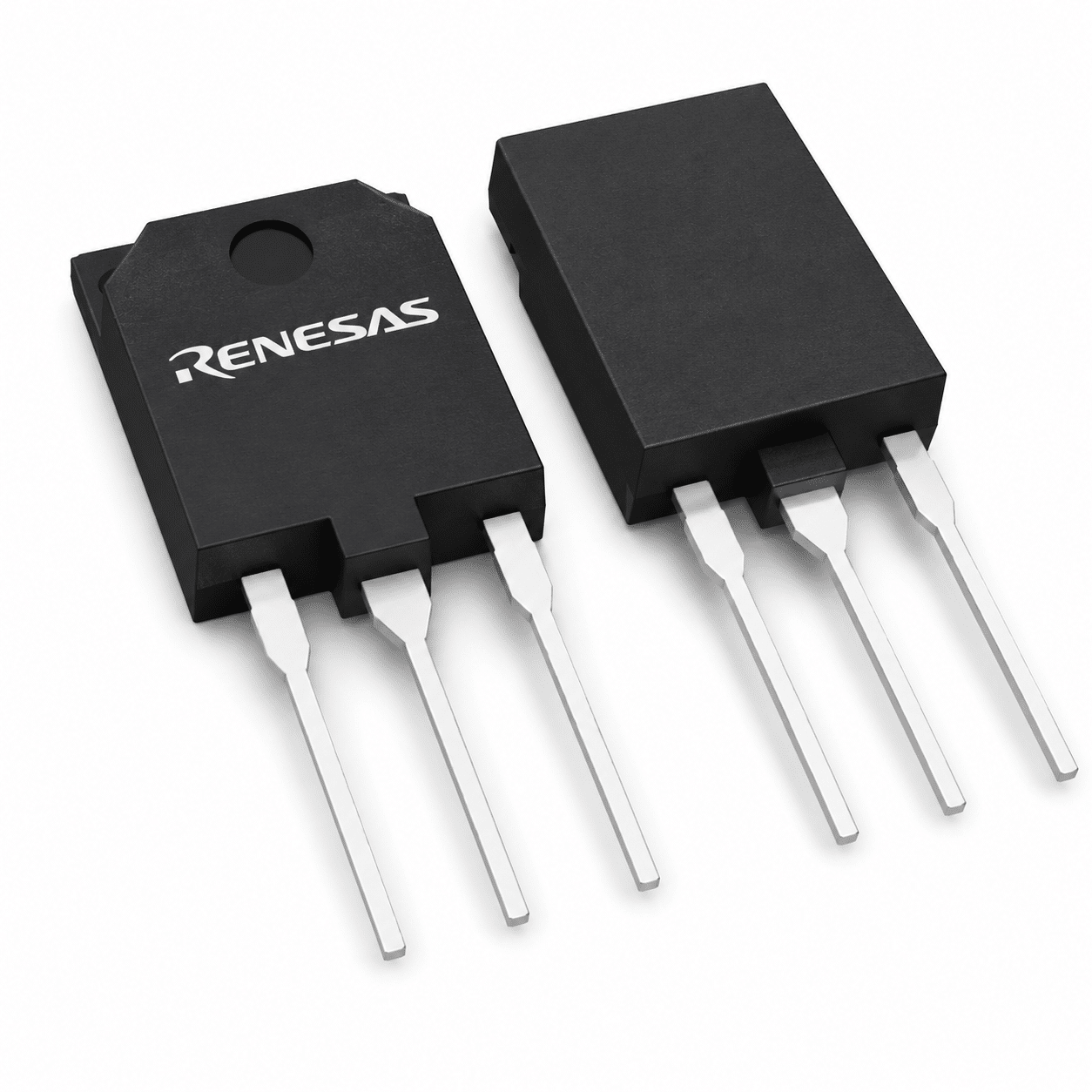

RJP60F0DPM-00#T1 600 V Induction-Heating IGBT
The RJP60F0DPM-00#T1 is a 600 V trench IGBT developed for soft-switching induction-heating applications. It is rated at 25 A at 100°C, 50 A at 25°C and 1.4 V typical VCE(sat), but it is obsolete and should be sourced only after lifecycle and substitution review.
What RJP60F0DPM-00#T1 Is Designed to Do
The RJP60F0DPM-00#T1 is a 600 V trench IGBT developed for soft-switching induction-heating applications. It is rated at 25 A at 100°C, 50 A at 25°C and 1.4 V typical VCE(sat), but it is obsolete and should be sourced only after lifecycle and substitution review. Final suitability depends on the complete circuit, software, thermal, mechanical, qualification and lifecycle requirements.
For sourcing, the base family name is not enough. The full RJP60F0DPM-00#T1 ordering code, package, packing format, revision or grade, source condition and required inspection evidence should be confirmed against the actual order.
- Collector-emitter voltage: 600 V
- Collector current: 50 A at 25°C; 25 A at 100°C
- Peak collector current: 100 A
Key Selection Characteristics
Collector-emitter voltage: 600 V
Use this electrical characteristic to check operating margin, switching conditions, thermal loading and protection requirements in the complete circuit.
Collector current: 50 A at 25°C; 25 A at 100°C
Use this electrical characteristic to check operating margin, switching conditions, thermal loading and protection requirements in the complete circuit.
Peak collector current: 100 A
Use this electrical characteristic to check operating margin, switching conditions, thermal loading and protection requirements in the complete circuit.
Technical Specifications
| Parameter | Verified Identification Detail |
|---|---|
| Manufacturer | Renesas Electronics |
| Part Number (MPN) | RJP60F0DPM-00#T1 |
| Component Type | 600 V Induction-Heating IGBT |
| Collector-emitter voltage | 600 V |
| Collector current | 50 A at 25°C; 25 A at 100°C |
| Peak collector current | 100 A |
| VCE(sat) | 1.4 V typical |
| Recommended switching range | 10 kHz to 100 kHz soft switching |
| Package | 3-lead TO-3PFM |
| Lifecycle | Obsolete |
Typical Application Directions
- Induction-heating cookers — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Soft-switching power stages — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Legacy PFC and high-power repair programs — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
Order-Specific Procurement Review
Exact identity: Confirm the complete manufacturer part number, suffix, package, grade, packing format and acceptable alternatives.
Inspection evidence: Agree the required label, packaging, visual, traceability or additional test evidence before release.
Commercial and delivery terms: Review offered quantity, source condition, date or lot information, lead time, destination and shipping documents for the actual order.
Send RJP60F0DPM-00#T1, quantity, target date, destination and evidence requirements.
Technical reference: manufacturer product page or datasheet.
Specifications support identification and sourcing review. Confirm the latest manufacturer documentation, complete ordering code and application requirements before design release or purchase.
