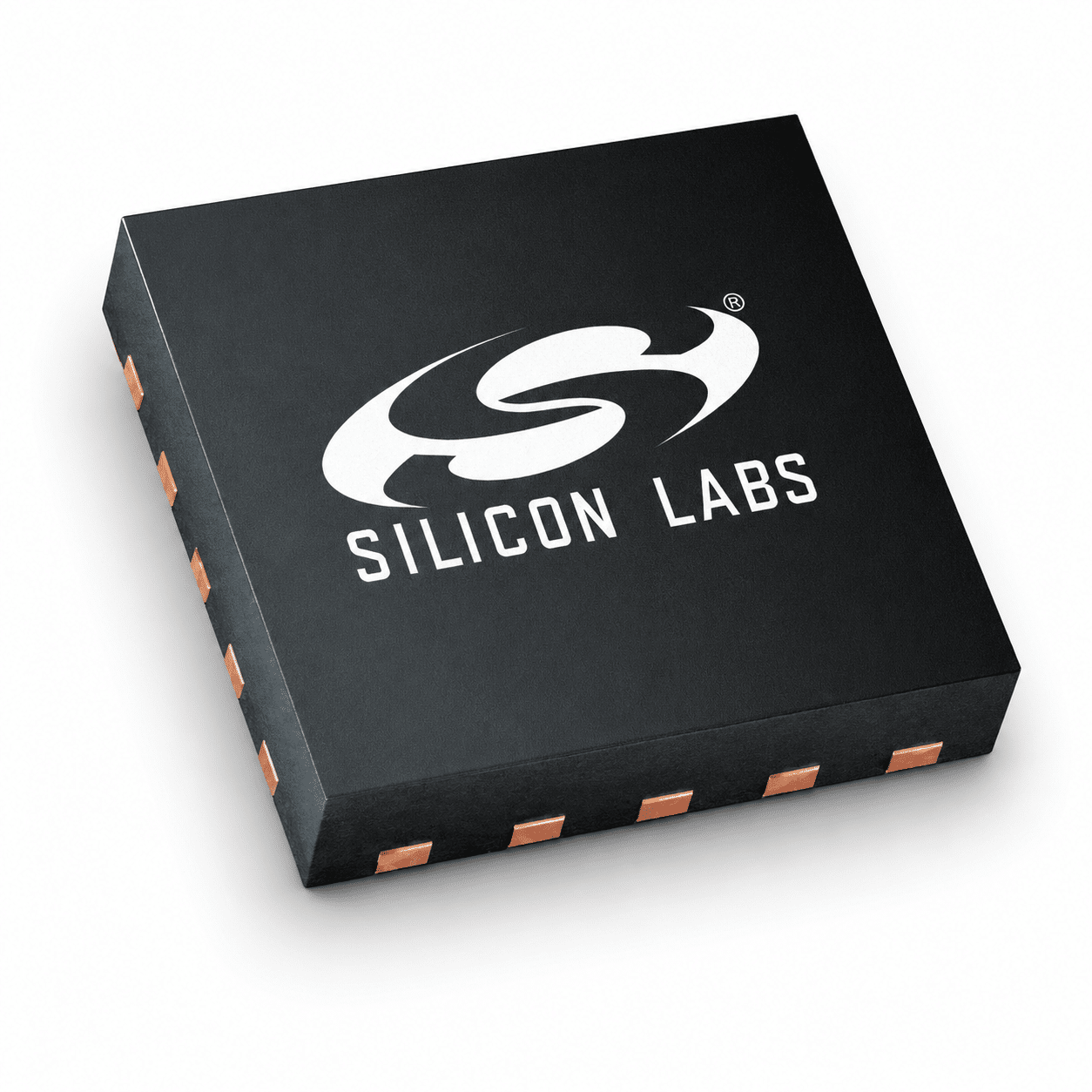

SI4432-B1-FMR (240 MHz to 930 MHz RF Transceiver)

EZRadioPRO transceiver with 240–930 MHz coverage and up to +20 dBm TX power. Supports FSK/GFSK and OOK with different rate limits; 20-pin QFN. Send the full B1-FMR code and quantity for an RFQ.

SKU: SI4432-B1-FMR Category: Brand:

Sub-GHz FSK and OOK connectivity for established designs

SI4432-B1-FMR is an EZRadioPRO transceiver covering 240–930 MHz, with SPI control, packet handling and transmit/receive FIFOs. It is a radio IC for an external host MCU rather than a complete wireless module.

The Si4432 supports up to +20 dBm transmit power. FSK/GFSK and OOK use different data-rate limits, and the board’s RF network must be matched to the selected operating band.

Technical specifications

Specifications are summarized from the manufacturer documents linked below. Use the complete ordering code and the applicable datasheet revision when validating a design.

Manufacturer Silicon Labs
Ordering code SI4432-B1-FMR
Function EZRadioPRO sub-GHz transceiver
Frequency range 240–930 MHz for Si4432
Modulation FSK, GFSK and OOK
FSK data rate 0.123–256 kbps
OOK data rate 0.123–40 kbps
Transmit power Up to +20 dBm; datasheet operating conditions apply
Host control SPI
Supply 1.8–3.6 V
Package 20-pin QFN, Pb-free
Operating temperature −40°C to +85°C
Packing suffix R = tape and reel

Applications

  • Legacy wireless sensor, remote-control and telemetry boards designed for the Si4432 packet interface.
  • Maintenance of established sub-GHz equipment where the firmware image and RF channel plan are available.

Selection and compatibility guide

Separate OOK and FSK limits

Do not assign the 256 kbps FSK maximum to OOK. Review modulation, bit rate, deviation and receiver bandwidth together.

Check the regional channel plan

Match filters, antenna, output power and duty cycle to the intended deployment. Verify the complete product against the applicable radio requirements.

Review B1 compatibility

Retain the B1 revision, register configuration and packet format in replacement requests. A different EZRadioPRO part may require firmware and RF circuit changes.

Lifecycle and component sourcing

Include the full ordering code, silicon revision, required packing and any programming requirements in the RFQ. Confirm the offered condition, lot/date codes and available traceability before commercial approval.

  • Confirm the complete ordering code, lot/date-code restrictions and required packing.
  • Agree inspection scope, acceptance criteria and traceability documents for the offered lot.
  • Confirm availability, price and lead time in the quotation before ordering.

Request pricing and availability

Use Add to RFQ above for SI4432-B1-FMR and your quantity. Use Quick RFQ for a multi-part BOM.

  • Complete part number and required quantity
  • Target delivery date and destination
  • Packing, date-code, inspection and traceability requirements

Sending an RFQ does not place a paid order. Price, offered condition and delivery terms are confirmed in the quotation.
