SI8902B-A01-GSR

Skyworks SI8902B-A01-GSR: 10-bit isolated monitoring ADC with three analog inputs and SPI, in a 16-pin wide-body SOIC. This discontinued ordering code is supplied with tape-and-reel packing; request lot-specific availability and a quotation.

SKU: SI8902B-A01-GSR Category: Brand:

Isolated analog monitoring with an SPI interface

The SI8902B-A01-GSR combines a 10-bit successive-approximation ADC, three analog inputs and an isolated SPI interface. It converts analog measurements into digital data for isolated monitoring and data-acquisition systems.

For an existing board, compare the full ordering code with your BOM before sourcing a replacement. For a new design, review the lifecycle notice below before committing the device to production.

Technical specifications

Electrical limits and ordering details are specified in the Skyworks Si8900/1/2 datasheet. Supply and temperature ranges are recommended operating conditions, not absolute maximum ratings. Each supply is referenced to its local ground.

Manufacturer Skyworks Solutions
Orderable part number SI8902B-A01-GSR
Product category Isolated monitoring analog-to-digital converter
ADC architecture 10-bit SAR; three analog input channels
Host interface Isolated SPI, Mode 3 (CPOL = 1, CPHA = 1)
Analog input range 0 to VREF; VDDA is the default reference
Input-side supply, VDDA 2.7–3.6 V, relative to GNDA
Interface-side supply, VDDB 2.7–5.5 V, relative to GNDB
Operating temperature −40 to +85 °C

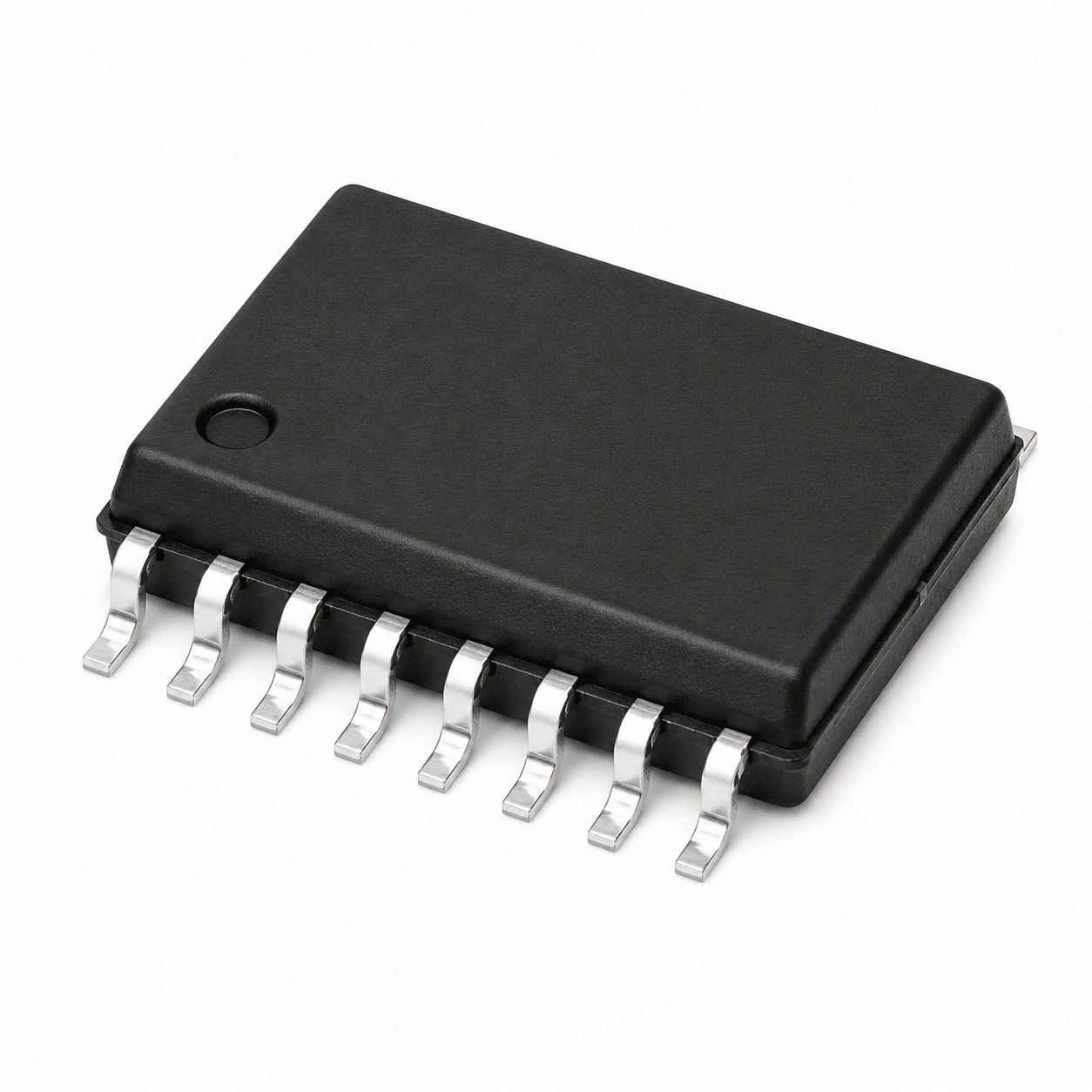

Package 16-pin wide-body SOIC; 7.50 mm body width
Mounting Surface mount
Packing Tape and reel (R suffix)

Applications

The manufacturer lists these uses for the Si8900/1/2 family; device-grade suitability still requires a system review.

  • Isolated data acquisition: transfer analog measurements across separate ground domains.
  • Temperature and humidity monitoring: acquire conditioned analog sensor outputs.
  • Power-system monitoring: measurement functions in mains monitors and solar inverters, with suitable external sensing circuitry.

Selection and compatibility guide

Match the measurement range

Compare the signal at the ADC pin with the selected reference and the datasheet input limits. Review signal conditioning, filtering and source impedance before committing the part to your design.

Confirm interface and timing

The SDO output does not enter high impedance when EN is deasserted. The datasheet calls for separate MISO signals with multiple SPI slaves to avoid contention. Review your bus wiring and host firmware before reuse.

Keep the complete ordering code

Match SI8902B-A01-GSR against the approved BOM, including the isolation grade and packing suffix. A similar family name or package outline is insufficient evidence of a drop-in replacement.

Review isolation and board fit

Confirm the exact ordering grade, package footprint and electrical conditions in the datasheet. Review both power domains and the PCB layout against your system requirements; a component isolation rating does not certify the finished assembly.

Lifecycle and component sourcing

The manufacturer notice identifies this ordering code as discontinued and specifies no alternate material. Any proposed substitute needs an engineering review of pinout, analog limits, isolation, serial commands and board layout before approval.

For repair, maintenance or an existing production BOM, state whether the exact part is mandatory and whether alternatives may be evaluated. Current quantity, price and delivery date require confirmation against the actual offered lot.

  • Lot and date code: specify acceptable date-code ranges, mixed-lot restrictions and the quantity needed from one lot.
  • Packing and condition: confirm reel condition, sealed or opened packaging, storage information and handling needs before acceptance.
  • Inspection and traceability: agree the inspection or electrical test scope, acceptance criteria and required provenance records before ordering. Request lot-specific reports where required.

Request pricing and availability

Use Add to RFQ above to include this part and your quantity. For multiple parts, share your BOM through Quick RFQ.

  • Complete part number, required quantity, target delivery date and destination
  • Packing preference and any date-code or lot restrictions
  • Inspection, traceability or documentation requirements

Price, availability, offered condition and lead time are confirmed in the quotation. Sending an RFQ does not place a paid order.
