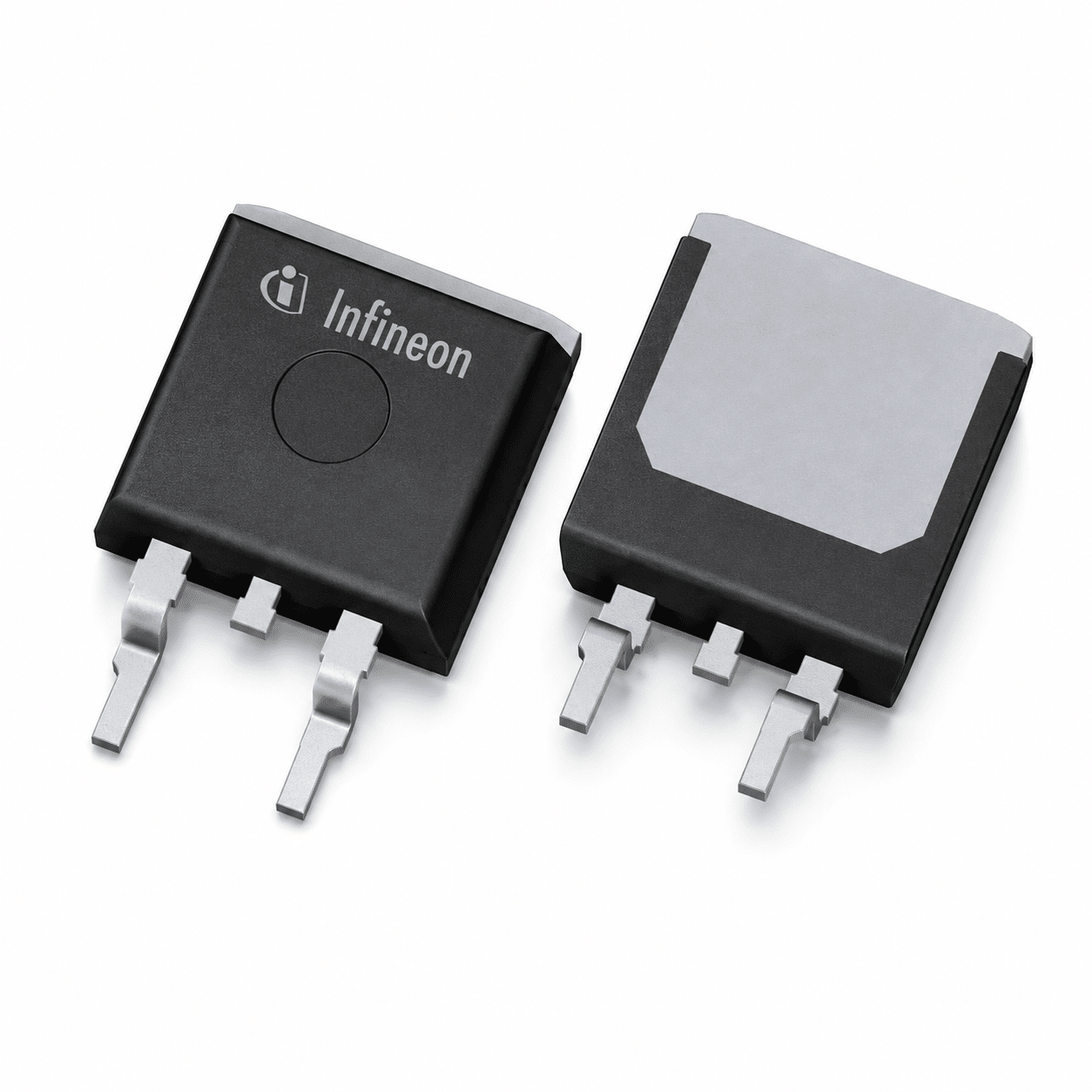

IPB45N06S4L-08 60 V Automotive N-Channel MOSFET
The IPB45N06S4L-08 is a 60 V automotive N-channel OptiMOS T2 power MOSFET in D2PAK. It supports up to 45 A at 25°C, offers 7.9 mΩ maximum RDS(on) at 10 V and is qualified to AEC-Q101.
What IPB45N06S4L-08 Is Designed to Do
The IPB45N06S4L-08 is a 60 V automotive N-channel OptiMOS T2 power MOSFET in D2PAK. It supports up to 45 A at 25°C, offers 7.9 mΩ maximum RDS(on) at 10 V and is qualified to AEC-Q101. Final suitability depends on the complete circuit, software, thermal, mechanical, qualification and lifecycle requirements.
For sourcing, the base family name is not enough. The full IPB45N06S4L-08 ordering code, package, packing format, revision or grade, source condition and required inspection evidence should be confirmed against the actual order.
- Polarity: N-channel
- Drain-source voltage: 60 V
- Drain current: 45 A maximum at 25°C
Key Selection Characteristics
Polarity: N-channel
This verified characteristic helps identify the intended device variant and should be reviewed together with the complete electrical, mechanical and lifecycle requirements.
Drain-source voltage: 60 V
Use this electrical characteristic to check operating margin, switching conditions, thermal loading and protection requirements in the complete circuit.
Drain current: 45 A maximum at 25°C
Use this electrical characteristic to check operating margin, switching conditions, thermal loading and protection requirements in the complete circuit.
Technical Specifications
| Parameter | Verified Identification Detail |
|---|---|
| Manufacturer | Infineon Technologies |
| Part Number (MPN) | IPB45N06S4L-08 |
| Component Type | 60 V Automotive N-Channel MOSFET |
| Polarity | N-channel |
| Drain-source voltage | 60 V |
| Drain current | 45 A maximum at 25°C |
| RDS(on) | 7.9 mΩ maximum at 10 V |
| Total gate charge | 49 nC typical |
| Operating temperature | -55°C to 175°C |
| Package | D2PAK / PG-TO263-3 |
| Qualification | Automotive AEC-Q101 |
| Lifecycle / Status | Not recommended for new designs |
Typical Application Directions
- Automotive LED lighting — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- High-current load switching — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Automotive power-distribution circuits — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
Order-Specific Procurement Review
Exact identity: Confirm the complete manufacturer part number, suffix, package, grade, packing format and acceptable alternatives.
Inspection evidence: Agree the required label, packaging, visual, traceability or additional test evidence before release.
Commercial and delivery terms: Review offered quantity, source condition, date or lot information, lead time, destination and shipping documents for the actual order.
Send IPB45N06S4L-08, quantity, target date, destination and evidence requirements.
Technical reference: manufacturer product page or datasheet.
Specifications support identification and sourcing review. Confirm the latest manufacturer documentation, complete ordering code and application requirements before design release or purchase.
