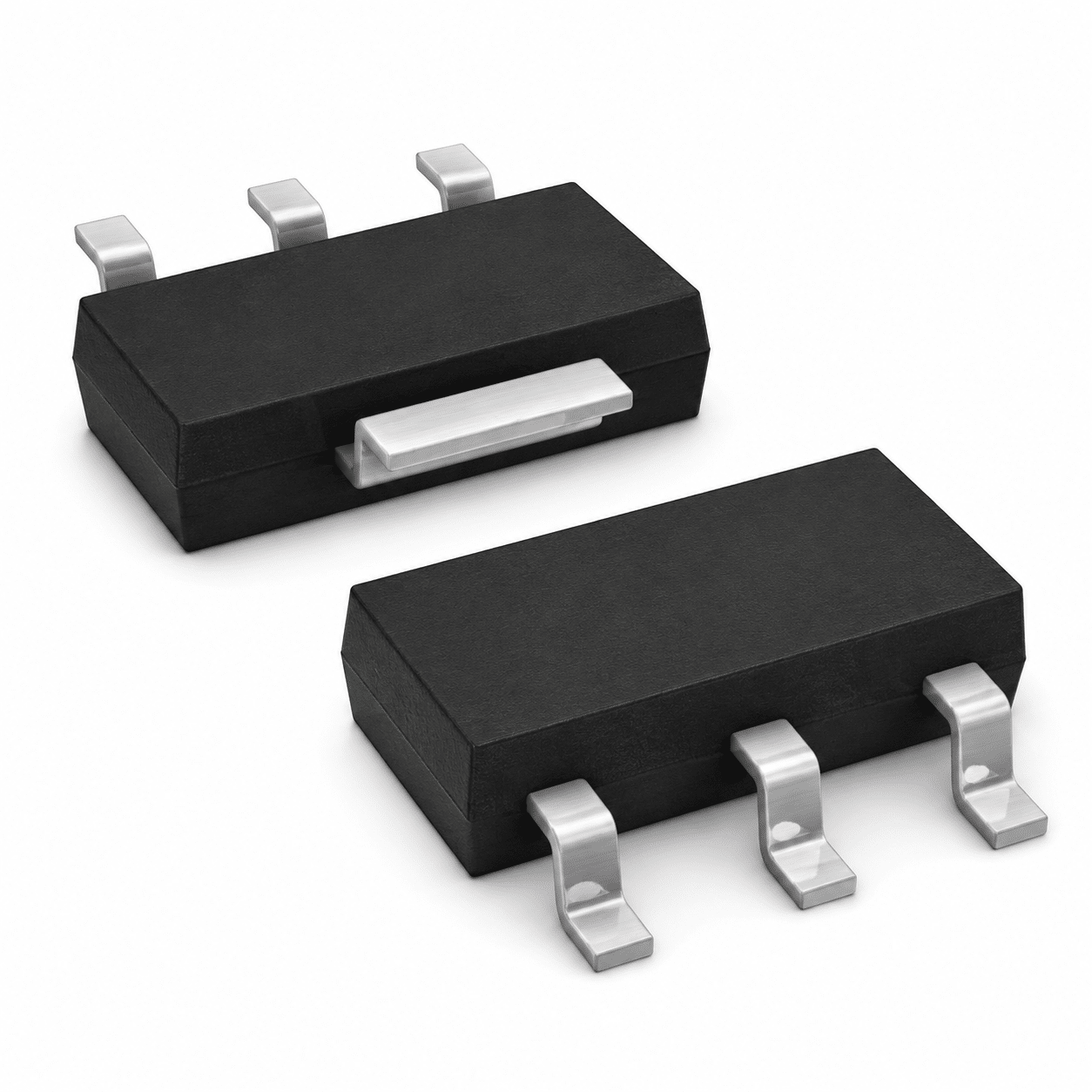

TLE42644G 5 V 100 mA Automotive LDO Regulator
The TLE42644G is an automotive low-dropout fixed regulator that converts inputs up to 45 V to a regulated 5 V output. It supports up to 100 mA, draws 40 µA typical quiescent current and includes current limiting and overtemperature shutdown.
What TLE42644G Is Designed to Do
The TLE42644G is an automotive low-dropout fixed regulator that converts inputs up to 45 V to a regulated 5 V output. It supports up to 100 mA, draws 40 µA typical quiescent current and includes current limiting and overtemperature shutdown. Final suitability depends on the complete circuit, software, thermal, mechanical, qualification and lifecycle requirements.
For sourcing, the base family name is not enough. The full TLE42644G ordering code, package, packing format, revision or grade, source condition and required inspection evidence should be confirmed against the actual order.
- Regulator type: Fixed-output automotive LDO
- Output voltage: 5.0 V
- Maximum output current: 100 mA
Key Selection Characteristics
Regulator type: Fixed-output automotive LDO
This verified characteristic helps identify the intended device variant and should be reviewed together with the complete electrical, mechanical and lifecycle requirements.
Output voltage: 5.0 V
Use this electrical characteristic to check operating margin, switching conditions, thermal loading and protection requirements in the complete circuit.
Maximum output current: 100 mA
Use this electrical characteristic to check operating margin, switching conditions, thermal loading and protection requirements in the complete circuit.
Technical Specifications
| Parameter | Verified Identification Detail |
|---|---|
| Manufacturer | Infineon Technologies |
| Part Number (MPN) | TLE42644G |
| Component Type | 5 V 100 mA Automotive LDO Regulator |
| Regulator type | Fixed-output automotive LDO |
| Output voltage | 5.0 V |
| Maximum output current | 100 mA |
| Operating input range | 5.5 V to 45 V |
| Typical dropout voltage | 220 mV at 100 mA |
| Typical quiescent current | 40 µA |
| Operating temperature | -40°C to 150°C |
| Package | SOT-223 / PG-SOT223-4 |
| Lifecycle / Status | Active and preferred |
Typical Application Directions
- Automotive electronic modules — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Low-standby-current control units — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Protected 5 V rails in harsh environments — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
Order-Specific Procurement Review
Exact identity: Confirm the complete manufacturer part number, suffix, package, grade, packing format and acceptable alternatives.
Inspection evidence: Agree the required label, packaging, visual, traceability or additional test evidence before release.
Commercial and delivery terms: Review offered quantity, source condition, date or lot information, lead time, destination and shipping documents for the actual order.
Send TLE42644G, quantity, target date, destination and evidence requirements.
Technical reference: manufacturer product page or datasheet.
Specifications support identification and sourcing review. Confirm the latest manufacturer documentation, complete ordering code and application requirements before design release or purchase.
