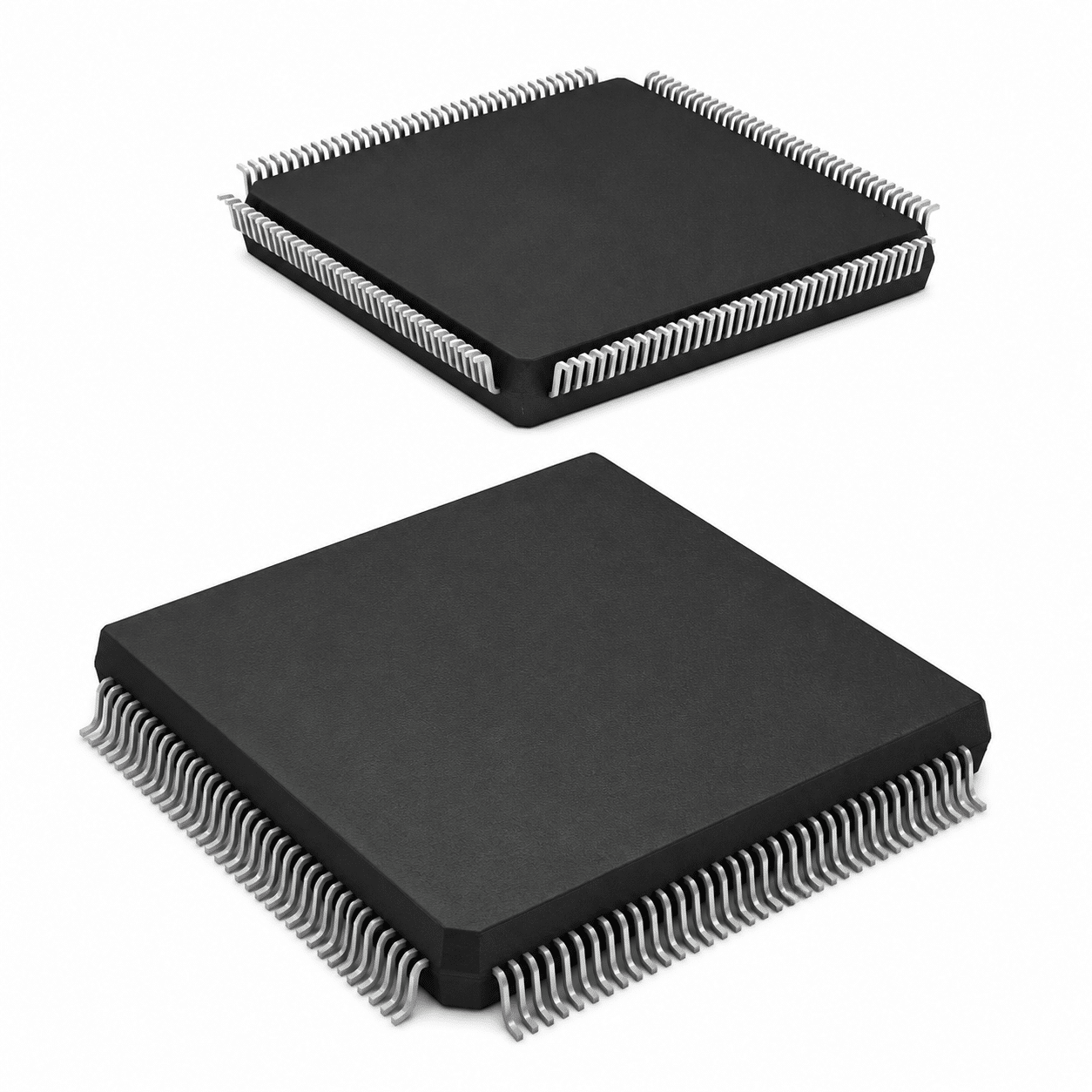

UPD70F3347GJ(A)-GAE-AX V850ES/SJ3 32-Bit Microcontroller
The UPD70F3347GJ(A)-GAE-AX is an obsolete V850ES/SJ3 32-bit microcontroller for legacy automotive and embedded systems. It provides 768 KB program memory, 60 KB RAM, 128 I/O ports, mixed-signal peripherals and vehicle-network support.
What UPD70F3347GJ(A)-GAE-AX Is Designed to Do
The UPD70F3347GJ(A)-GAE-AX is an obsolete V850ES/SJ3 32-bit microcontroller for legacy automotive and embedded systems. It provides 768 KB program memory, 60 KB RAM, 128 I/O ports, mixed-signal peripherals and vehicle-network support. Final suitability depends on the complete circuit, software, thermal, mechanical, qualification and lifecycle requirements.
For sourcing, the base family name is not enough. The full UPD70F3347GJ(A)-GAE-AX ordering code, package, packing format, revision or grade, source condition and required inspection evidence should be confirmed against the actual order.
- CPU: 32-bit V850ES
- Maximum frequency: 32 MHz
- Program memory: 768 KB
Key Selection Characteristics
CPU: 32-bit V850ES
This verified characteristic helps identify the intended device variant and should be reviewed together with the complete electrical, mechanical and lifecycle requirements.
Maximum frequency: 32 MHz
Use this performance point to confirm timing, throughput, interface compatibility and system-level margin before selecting the ordering code.
Program memory: 768 KB
This capacity or architecture detail helps determine whether the device fits the processing, storage, conversion or channel requirements of the target design.
Technical Specifications
| Parameter | Verified Identification Detail |
|---|---|
| Manufacturer | Renesas Electronics |
| Part Number (MPN) | UPD70F3347GJ(A)-GAE-AX |
| Component Type | V850ES/SJ3 32-Bit Microcontroller |
| CPU | 32-bit V850ES |
| Maximum frequency | 32 MHz |
| Program memory | 768 KB |
| RAM | 60 KB |
| ADC / DAC | 10-bit 16-channel ADC / 8-bit 2-channel DAC |
| Supply voltage | 2.85 V to 3.6 V |
| Package | 144-pin LQFP |
| Lifecycle | Obsolete |
Typical Application Directions
- Legacy automotive network controllers — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Established V850ES/SJ3 platforms — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Repair and lifecycle-extension programs — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
Order-Specific Procurement Review
Exact identity: Confirm the complete manufacturer part number, suffix, package, grade, packing format and acceptable alternatives.
Inspection evidence: Agree the required label, packaging, visual, traceability or additional test evidence before release.
Commercial and delivery terms: Review offered quantity, source condition, date or lot information, lead time, destination and shipping documents for the actual order.
Send UPD70F3347GJ(A)-GAE-AX, quantity, target date, destination and evidence requirements.
Technical reference: manufacturer product page or datasheet.
Specifications support identification and sourcing review. Confirm the latest manufacturer documentation, complete ordering code and application requirements before design release or purchase.
