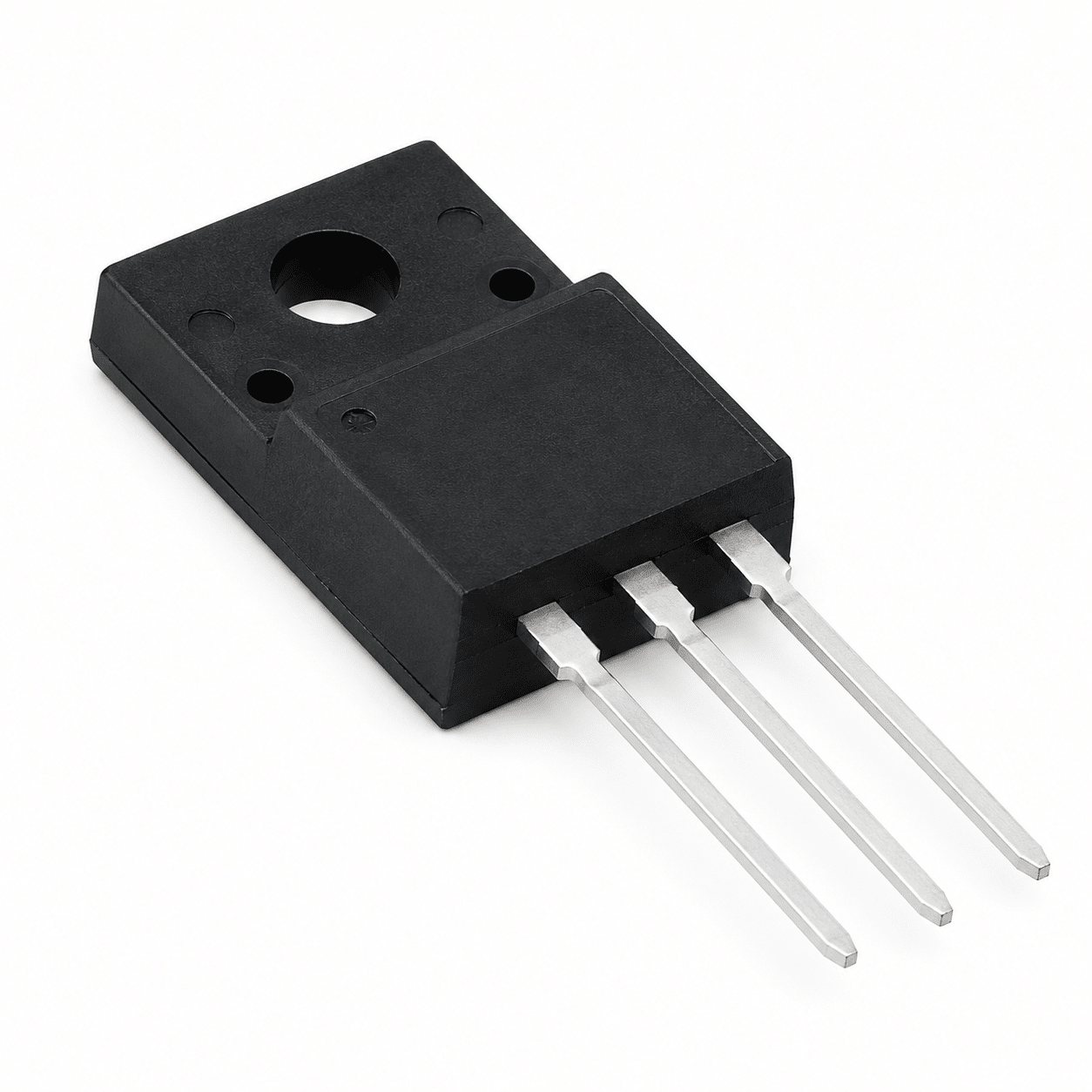

TK14A55D(STA4QM) (N-Channel Power MOSFET)

Toshiba TK14A55D is an N-channel power MOSFET for switching regulators, with a 550 V absolute maximum drain-source rating. Confirm the TK14A55D(STA4QM) suffix, packing and lot requirements when requesting a quotation.

SKU: TK14A55D(STA4QM) Category: Brand:

TK14A55D N-channel power MOSFET for switching regulators

Toshiba TK14A55D is an enhancement-mode N-channel power MOSFET for switching regulator applications. Its gate controls the switching path between drain and source in a suitably designed power stage.

This listing retains the requested TK14A55D(STA4QM) code. The electrical data below describe Toshiba’s TK14A55D base device; confirm the complete suffix and offered packing against the approved BOM before sourcing.

Technical specifications

Checked against Toshiba’s TK14A55D datasheet. Absolute maximum ratings are stress limits, not recommended continuous operating targets. Electrical characteristics below are at Ta = 25 °C.

Manufacturer / requested code Toshiba / TK14A55D(STA4QM)
Device architecture N-channel enhancement-mode silicon power MOSFET; π-MOS VII
Drain-source voltage, VDSS 550 V, absolute maximum
Gate-source voltage, VGSS ±30 V, absolute maximum
Drain current, ID 14 A, absolute maximum; observe channel-temperature limit
On-resistance, RDS(on) 0.31 Ω typical; 0.37 Ω maximum, VGS = 10 V, ID = 7 A
Gate threshold 2.0–4.0 V, VDS = 10 V, ID = 1 mA
Package / mounting TO-220SIS; 3-pin through hole
Terminal assignment 1: Gate; 2: Drain; 3: Source
Maximum channel temperature 150 °C, absolute maximum
Packing suffix Confirm STA4QM ordering and packing details with the offered lot

Applications

  • Switching voltage regulators: Toshiba identifies this as the device’s application scope; check loss, voltage stress and thermal margin for the selected topology.
  • Existing power-supply maintenance: match the original device, gate-drive circuit, pinout and thermal arrangement before accepting a replacement.

Selection and compatibility guide

Check switching and thermal margins

Evaluate conduction and switching losses at your actual current, gate drive and temperature. Check safe operating area and transient stress in the datasheet; do not treat the maximum voltage and current ratings as simultaneously usable operating points.

Match the gate-drive circuit

Gate threshold is measured at a small test current. It is not the gate voltage required for the stated on-resistance. Check gate-drive amplitude, switching behavior and ringing with the actual circuit.

Confirm mechanical fit

Compare terminal order, lead spacing, mounting hardware and heatsink arrangement with the original assembly. Similar TO-220 outlines do not establish identical electrical or thermal performance.

Review proposed alternatives

Toshiba lists TK10A60W as a new-design recommendation with similar characteristics. This is not a drop-in guarantee: recheck ratings, drive, switching behavior, safe operating area and thermal performance before approval.

Lifecycle and component sourcing

For an existing approved design, retain the complete TK14A55D(STA4QM) request and state whether alternatives are allowed. Request marking photographs and confirmation of the suffix, lot, packing and offered condition. Resolve any mismatch before accepting the quotation.

  • Confirm the complete ordering code, lot/date-code restrictions and required packing.
  • Agree inspection scope, acceptance criteria and traceability documents for the offered lot.
  • Confirm availability, price and lead time in the quotation before ordering.

Request pricing and availability

Use Add to RFQ above for TK14A55D(STA4QM) and your quantity. Use Quick RFQ for a multi-part BOM.

  • Complete part number and required quantity
  • Target delivery date and destination
  • Packing, date-code, inspection and traceability requirements

Sending an RFQ does not place a paid order. Price, offered condition and delivery terms are confirmed in the quotation.
