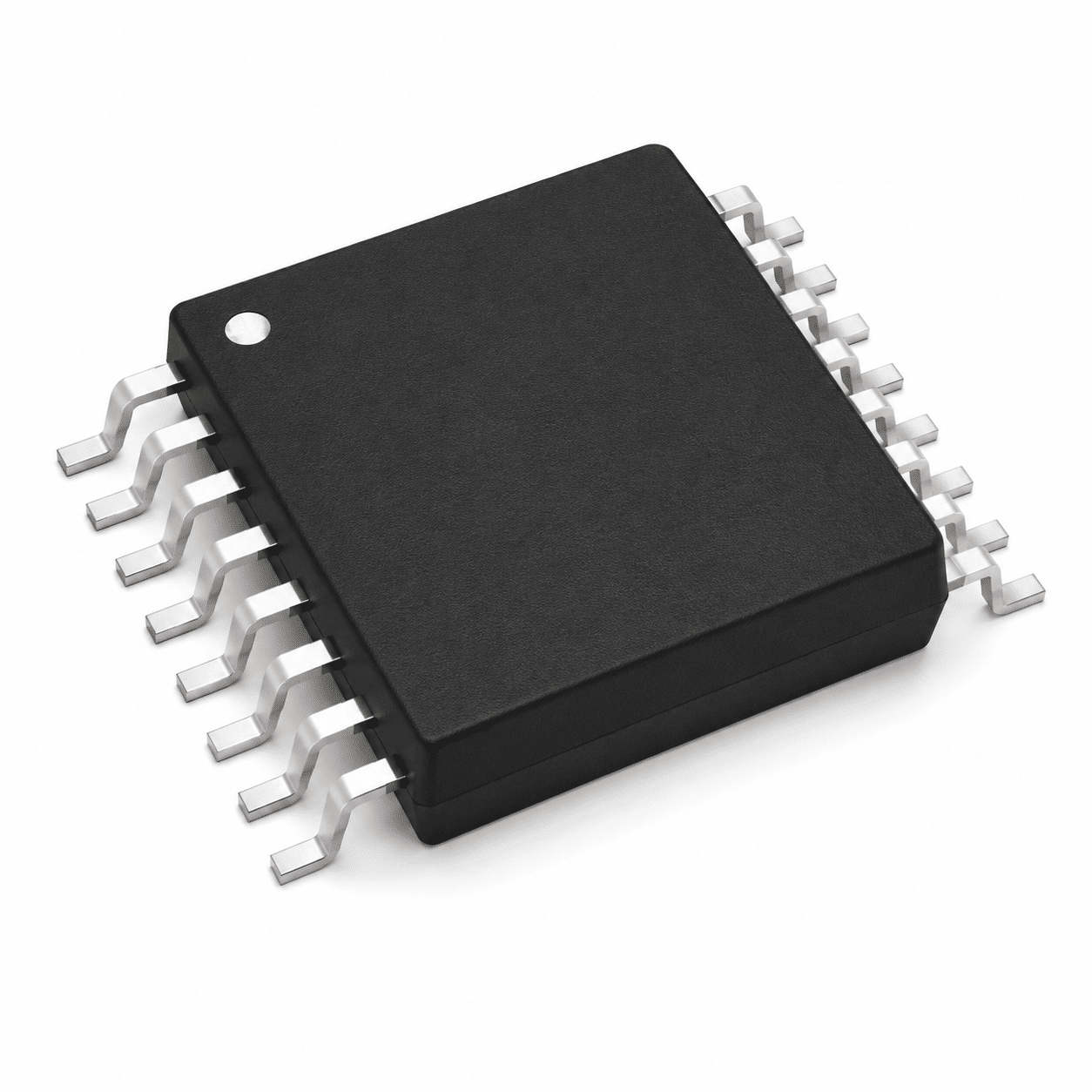

5V41065PGG8 PCIe Gen1/2 Clock Generator
The 5V41065PGG8 is a PCIe Gen1/2 compliant spread-spectrum clock generator with two differential HCSL outputs. It uses a 25 MHz crystal or LVCMOS input and can provide 25, 100, 125 or 200 MHz output selections from a 3.3 V supply.
What 5V41065PGG8 Is Designed to Do
The 5V41065PGG8 is a PCIe Gen1/2 compliant spread-spectrum clock generator with two differential HCSL outputs. It uses a 25 MHz crystal or LVCMOS input and can provide 25, 100, 125 or 200 MHz output selections from a 3.3 V supply. Final suitability depends on the complete circuit, software, thermal, mechanical, qualification and lifecycle requirements.
For sourcing, the base family name is not enough. The full 5V41065PGG8 ordering code, package, packing format, revision or grade, source condition and required inspection evidence should be confirmed against the actual order.
- Compliance: PCIe Gen1 and Gen2
- Differential outputs: 2 HCSL
- Input frequency: 25 MHz
Key Selection Characteristics
Compliance: PCIe Gen1 and Gen2
Use this performance point to confirm timing, throughput, interface compatibility and system-level margin before selecting the ordering code.
Differential outputs: 2 HCSL
This verified characteristic helps identify the intended device variant and should be reviewed together with the complete electrical, mechanical and lifecycle requirements.
Input frequency: 25 MHz
Use this performance point to confirm timing, throughput, interface compatibility and system-level margin before selecting the ordering code.
Technical Specifications
| Parameter | Verified Identification Detail |
|---|---|
| Manufacturer | Renesas Electronics |
| Part Number (MPN) | 5V41065PGG8 |
| Component Type | PCIe Gen1/2 Clock Generator |
| Compliance | PCIe Gen1 and Gen2 |
| Differential outputs | 2 HCSL |
| Input frequency | 25 MHz |
| Selectable outputs | 25, 100, 125 and 200 MHz |
| Core voltage | 3.3 V |
| Spread spectrum | Supported |
| Temperature range | 0°C to 70°C |
| Package | 16-pin TSSOP |
| Lifecycle / Status | Active; timing portfolio transition to SiTime |
Typical Application Directions
- PCI Express clock generation — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Communication equipment — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Embedded systems requiring EMI reduction — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
Order-Specific Procurement Review
Exact identity: Confirm the complete manufacturer part number, suffix, package, grade, packing format and acceptable alternatives.
Inspection evidence: Agree the required label, packaging, visual, traceability or additional test evidence before release.
Commercial and delivery terms: Review offered quantity, source condition, date or lot information, lead time, destination and shipping documents for the actual order.
Send 5V41065PGG8, quantity, target date, destination and evidence requirements.
Technical reference: manufacturer product page or datasheet.
Specifications support identification and sourcing review. Confirm the latest manufacturer documentation, complete ordering code and application requirements before design release or purchase.
