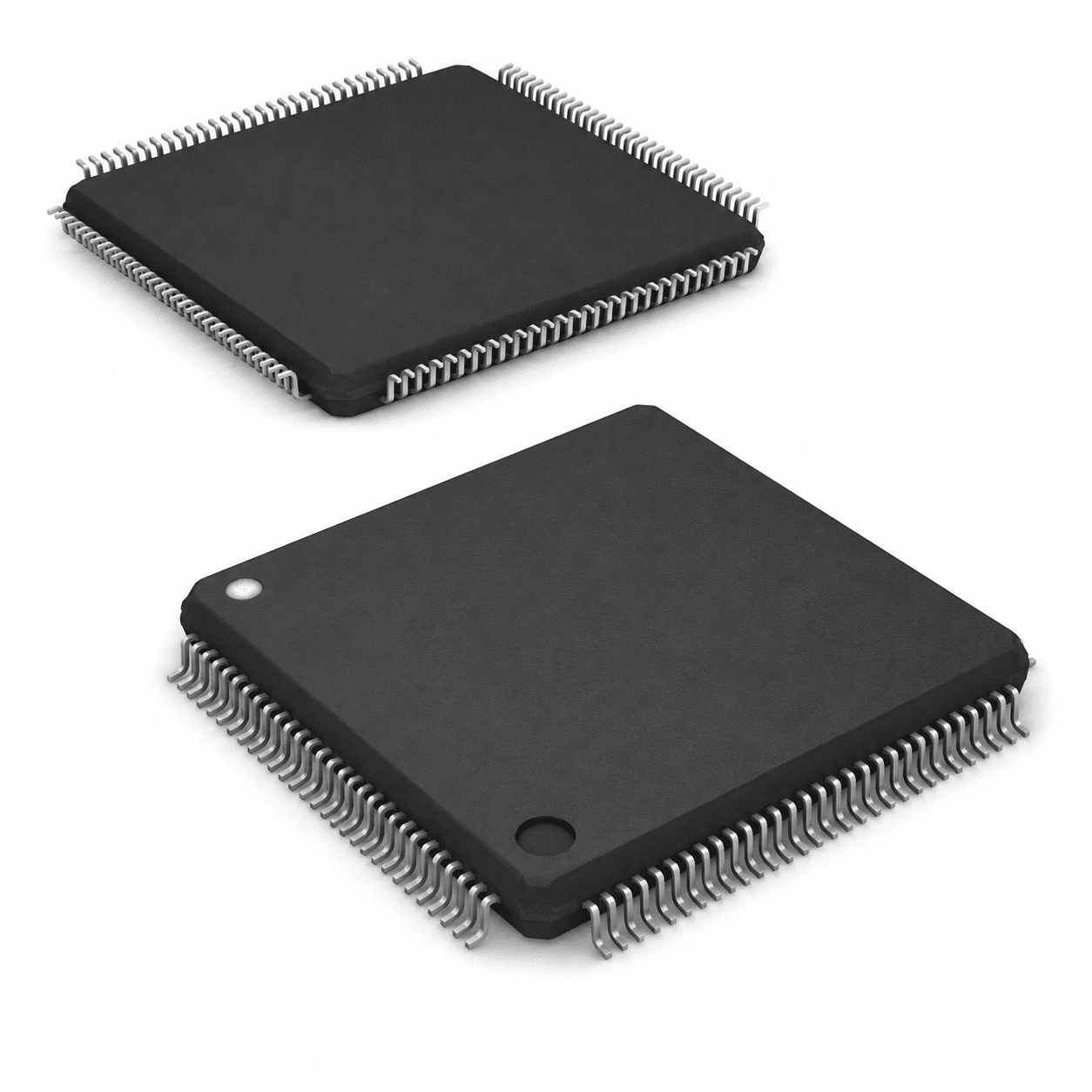

XC6SLX9-3TQG144C (Spartan-6 LX FPGA)

AMD Spartan-6 LX FPGA with 9,152 logic cells, 16 DSP slices and 576 Kb block RAM. TQG144 package with 102 user I/O, -3 speed grade and commercial junction-temperature range. Send quantity for an RFQ.

SKU: XC6SLX9-3TQG144C Category: Brand:

Spartan-6 LX logic for established embedded designs

XC6SLX9-3TQG144C is a Spartan-6 LX FPGA with 9,152 logic cells, 16 DSP48A1 slices and 576 Kb of block RAM. It provides programmable digital logic and parallel arithmetic for interface, control and buffering tasks.

This TQG144 variant has 102 user I/O. The TQG144 package does not support the family’s hard memory-controller blocks, which is important when evaluating external DDR interfaces.

Technical specifications

Device resources and package details are summarized from AMD documentation linked below. Electrical limits and timing must be checked for the complete ordering code.

Manufacturer AMD (Xilinx)
Ordering code XC6SLX9-3TQG144C
Architecture Spartan-6 LX FPGA
Logic cells / slices 9,152 / 1,430
LUTs / flip-flops 5,720 / 11,440
DSP slices 16 DSP48A1
Block RAM 32 × 18 Kb blocks; 576 Kb total
Package TQG144; 144 pins/balls; 20 × 20 mm body; 0.5 mm pitch
Package user I/O 102
Hard memory-controller support Not supported in TQG144
Speed / temperature grade -3; C = commercial, 0°C to +85°C junction
Core supply VCCINT 1.14–1.26 V, 1.2 V nominal for standard performance; MCB modes have additional conditions

Applications

  • Support for established Spartan-6 boards with validated logic and configuration files.
  • Programmable interface control and moderate DSP/buffering workloads within the LX9 resource limits.

Selection and compatibility guide

Respect the package differences

TQG144 exposes 102 user I/O. TQG144 and CSG324 are different footprints and offer different memory-controller access; they are not interchangeable board parts.

Use the correct implementation target

Select XC6SLX9-3TQG144C in the design flow and review placement, timing constraints, bank voltages and configuration pins. The speed-grade code is not a fixed application clock.

Check the configuration chain

Confirm the boot image, programming tools and external configuration memory. A discontinued configuration PROM does not by itself mean the FPGA is discontinued; review both components separately.

Lifecycle and component sourcing

Keep the full ordering code on the RFQ and quotation. A different density, speed grade or package can change pin assignments, timing closure, power and cooling requirements; accept a substitute only after engineering review.

  • Confirm the complete ordering code, lot/date-code restrictions and required packing.
  • Agree inspection scope, acceptance criteria and traceability documents for the offered lot.
  • Confirm availability, price and lead time in the quotation before ordering.

Request pricing and availability

Use Add to RFQ above for XC6SLX9-3TQG144C and your quantity. Use Quick RFQ for a multi-part BOM.

  • Complete part number and required quantity
  • Target delivery date and destination
  • Packing, date-code, inspection and traceability requirements

Sending an RFQ does not place a paid order. Price, offered condition and delivery terms are confirmed in the quotation.
