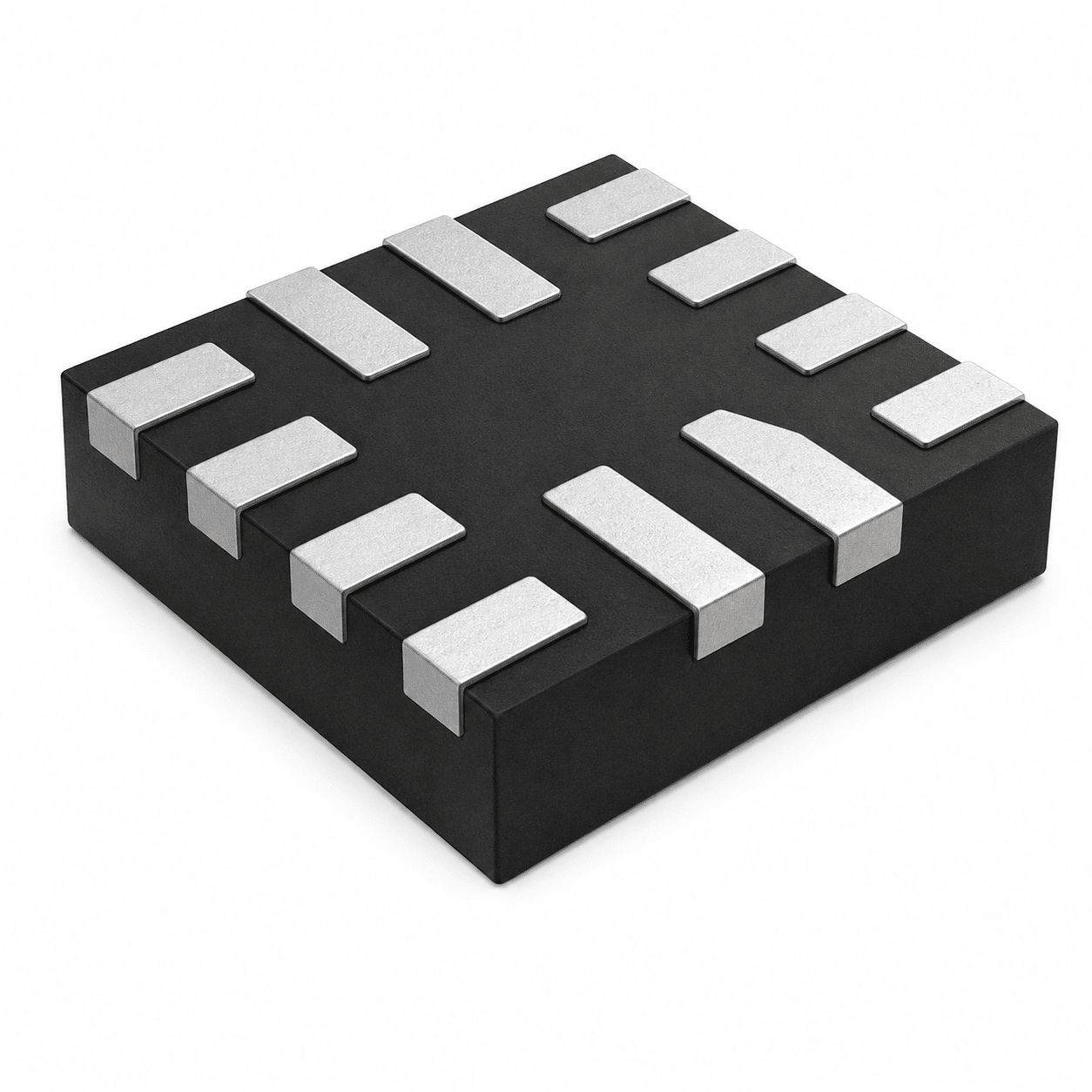

TUSB214IRWBR USB 2.0 High-Speed Signal Conditioner
The TUSB214IRWBR is a single-channel USB 2.0 high-speed redriver with DC boost and integrated BC1.2 CDP support. It is designed for 480 Mbps links, operates from 3.0 V to 3.6 V and supports -40°C to 85°C operation.
What TUSB214IRWBR Is Designed to Do
The TUSB214IRWBR is a single-channel USB 2.0 high-speed redriver with DC boost and integrated BC1.2 CDP support. It is designed for 480 Mbps links, operates from 3.0 V to 3.6 V and supports -40°C to 85°C operation. Final suitability depends on the complete circuit, software, thermal, mechanical, qualification and lifecycle requirements.
For sourcing, the base family name is not enough. The full TUSB214IRWBR ordering code, package, packing format, revision or grade, source condition and required inspection evidence should be confirmed against the actual order.
- Type: USB 2.0 redriver / signal conditioner
- USB speed: 480 Mbps
- Channels: 1
Key Selection Characteristics
Type: USB 2.0 redriver / signal conditioner
This verified characteristic helps identify the intended device variant and should be reviewed together with the complete electrical, mechanical and lifecycle requirements.
USB speed: 480 Mbps
Use this performance point to confirm timing, throughput, interface compatibility and system-level margin before selecting the ordering code.
Channels: 1
This capacity or architecture detail helps determine whether the device fits the processing, storage, conversion or channel requirements of the target design.
Technical Specifications
| Parameter | Verified Identification Detail |
|---|---|
| Manufacturer | Texas Instruments |
| Part Number (MPN) | TUSB214IRWBR |
| Component Type | USB 2.0 High-Speed Signal Conditioner |
| Type | USB 2.0 redriver / signal conditioner |
| USB speed | 480 Mbps |
| Channels | 1 |
| Supply voltage | 3.0 V to 3.6 V |
| Bandwidth | 240 MHz |
| Operating temperature | -40°C to 85°C |
| Package | 12-pin X2QFN (RWB) |
| Lifecycle / Status | Active |
Typical Application Directions
- USB cable-length extension — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Embedded USB 2.0 ports — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Systems requiring BC1.2 charging-port support — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
Order-Specific Procurement Review
Exact identity: Confirm the complete manufacturer part number, suffix, package, grade, packing format and acceptable alternatives.
Inspection evidence: Agree the required label, packaging, visual, traceability or additional test evidence before release.
Commercial and delivery terms: Review offered quantity, source condition, date or lot information, lead time, destination and shipping documents for the actual order.
Send TUSB214IRWBR, quantity, target date, destination and evidence requirements.
Technical reference: manufacturer product page or datasheet.
Specifications support identification and sourcing review. Confirm the latest manufacturer documentation, complete ordering code and application requirements before design release or purchase.
