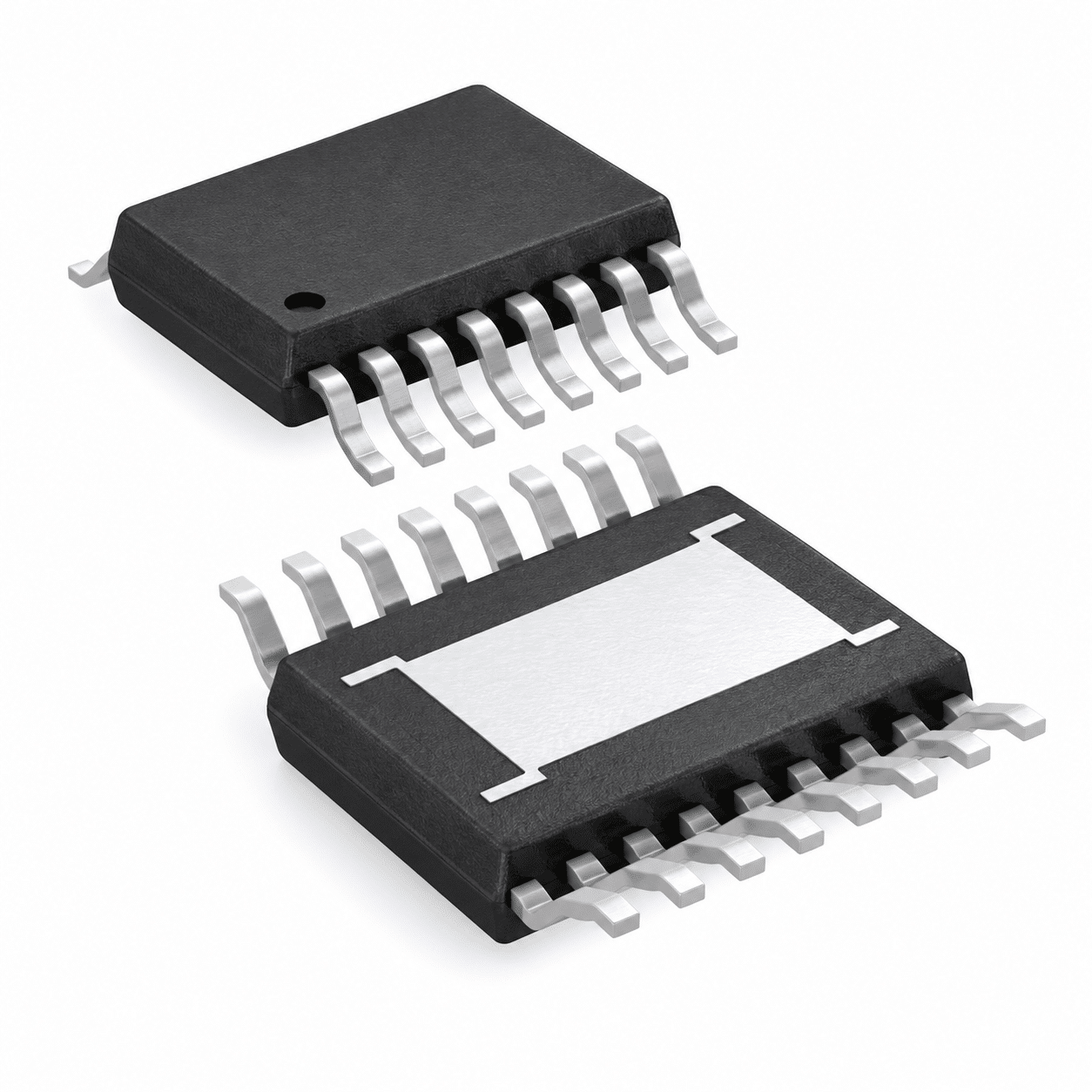

LT3990IMSE#TRPBF 62 V 350 mA Step-Down Regulator
The LT3990IMSE#TRPBF is an adjustable 62 V, 350 mA step-down regulator with integrated boost and catch diodes. Its 2.5 µA quiescent current, 4.2 V to 62 V operating range and 200 kHz to 2.2 MHz switching-frequency range suit always-on industrial and automotive rails.
What LT3990IMSE#TRPBF Is Designed to Do
The LT3990IMSE#TRPBF is an adjustable 62 V, 350 mA step-down regulator with integrated boost and catch diodes. Its 2.5 µA quiescent current, 4.2 V to 62 V operating range and 200 kHz to 2.2 MHz switching-frequency range suit always-on industrial and automotive rails. Final suitability depends on the complete circuit, software, thermal, mechanical, qualification and lifecycle requirements.
For sourcing, the base family name is not enough. The full LT3990IMSE#TRPBF ordering code, package, packing format, revision or grade, source condition and required inspection evidence should be confirmed against the actual order.
- Topology: Step-down (buck) regulator
- Input voltage: 4.2 V to 62 V
- Output current: 350 mA
Key Selection Characteristics
Topology: Step-down (buck) regulator
This verified characteristic helps identify the intended device variant and should be reviewed together with the complete electrical, mechanical and lifecycle requirements.
Input voltage: 4.2 V to 62 V
Use this electrical characteristic to check operating margin, switching conditions, thermal loading and protection requirements in the complete circuit.
Output current: 350 mA
Use this electrical characteristic to check operating margin, switching conditions, thermal loading and protection requirements in the complete circuit.
Technical Specifications
| Parameter | Verified Identification Detail |
|---|---|
| Manufacturer | Analog Devices |
| Part Number (MPN) | LT3990IMSE#TRPBF |
| Component Type | 62 V 350 mA Step-Down Regulator |
| Topology | Step-down (buck) regulator |
| Input voltage | 4.2 V to 62 V |
| Output current | 350 mA |
| Quiescent current | 2.5 µA typical |
| Switching frequency | 200 kHz to 2.2 MHz |
| Operating temperature | -40°C to 125°C |
| Package | 16-lead MSOP with exposed pad |
| Packing | Tape and reel |
| Lifecycle / Status | Production |
Typical Application Directions
- Industrial bias supplies — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Automotive always-on rails — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
- Low-power distributed power systems — review the complete interface, load, environment, qualification and lifecycle conditions for the target system.
Order-Specific Procurement Review
Exact identity: Confirm the complete manufacturer part number, suffix, package, grade, packing format and acceptable alternatives.
Inspection evidence: Agree the required label, packaging, visual, traceability or additional test evidence before release.
Commercial and delivery terms: Review offered quantity, source condition, date or lot information, lead time, destination and shipping documents for the actual order.
Send LT3990IMSE#TRPBF, quantity, target date, destination and evidence requirements.
Technical reference: manufacturer product page or datasheet.
Specifications support identification and sourcing review. Confirm the latest manufacturer documentation, complete ordering code and application requirements before design release or purchase.
