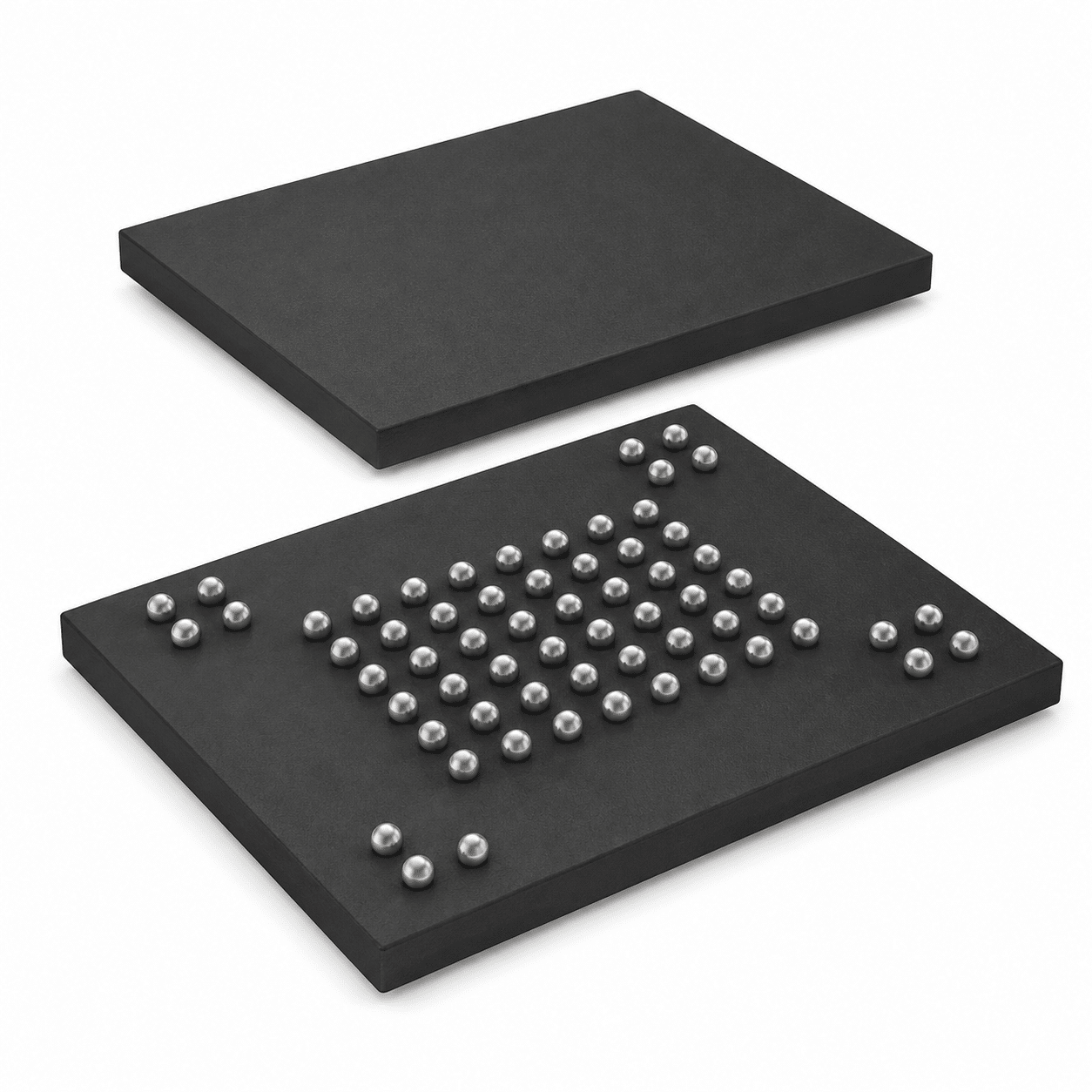

THGBMUG6C1LBAIL (8 GB e-MMC Managed Flash)

THGBMUG6C1LBAIL is an 8 GB consumer-grade e-MMC 5.1 managed flash device documented by KIOXIA. Check the host supply domains, package and boot configuration, then request lot-specific availability and pricing.

SKU: THGBMUG6C1LBAIL Category: Brand:

8 GB e-MMC managed flash for embedded storage

THGBMUG6C1LBAIL is an 8 GB consumer-grade e-MMC 5.1 managed flash device listed in KIOXIA’s product brief. The package integrates NAND flash and a controller for functions including error correction, wear leveling and bad-block management.

Match the full ordering code with your host’s storage interface and boot requirements. For a service replacement, confirm the required firmware image, provisioning and accepted device configuration before sourcing.

Technical specifications

Exact-device values from KIOXIA’s e-MMC Managed Flash Product Brief, Rev. 1.1. Interface maximum data rate is not guaranteed sustained application throughput. Supply ranges are operating supplies, not stress limits.

Manufacturer documentation KIOXIA; confirm legacy Toshiba markings against offered lot
Complete part number THGBMUG6C1LBAIL
Product type Managed NAND flash, e-MMC 5.1
Capacity 8 GB nominal; formatted usable capacity varies
Grade / process Consumer grade / FG NAND
Maximum interface data rate 400 MB/s
Main supply, VCC 2.7–3.6 V
I/O supply, VCCQ 1.70–1.95 V
Operating temperature −25 to +85 °C
Package dimensions 11.5 × 13 × 0.8 mm BGA

Applications

  • Embedded e-MMC storage: KIOXIA positions this product family for hosts requiring managed embedded storage.
  • Consumer-device platforms: family applications include smartphones, tablets, smart TVs and streaming devices; verify this consumer-grade part against your exact environment.
  • Existing-board maintenance: match the original device and provisioning requirements before an approved storage replacement.

Selection and compatibility guide

Check both supply domains

Verify VCC and VCCQ independently against your host and regulator design. Do not assume that a flash device’s main supply also defines the permitted I/O signaling voltage.

Confirm boot and firmware configuration

Review boot partitions, bus configuration, firmware image and device provisioning with the host software team. A matching capacity does not establish a directly usable replacement.

Match package and workload

Obtain the detailed ball map and board drawing for the exact ordering code. Evaluate actual read/write workload, latency, endurance needs and thermal conditions rather than treating the interface limit as sustained storage performance.

Lifecycle and component sourcing

Keep the full suffix in the RFQ and identify whether blank components or a defined programmed state are required. For legacy marked stock, request marking and packing photographs with lot-specific traceability. Any electrical or programming acceptance test should be agreed before order acceptance.

  • Confirm the complete ordering code, lot/date-code restrictions and required packing.
  • Agree inspection scope, acceptance criteria and traceability documents for the offered lot.
  • Confirm availability, price and lead time in the quotation before ordering.

Request pricing and availability

Use Add to RFQ above for THGBMUG6C1LBAIL and your quantity. Use Quick RFQ for a multi-part BOM.

  • Complete part number and required quantity
  • Target delivery date and destination
  • Packing, date-code, inspection and traceability requirements

Sending an RFQ does not place a paid order. Price, offered condition and delivery terms are confirmed in the quotation.
