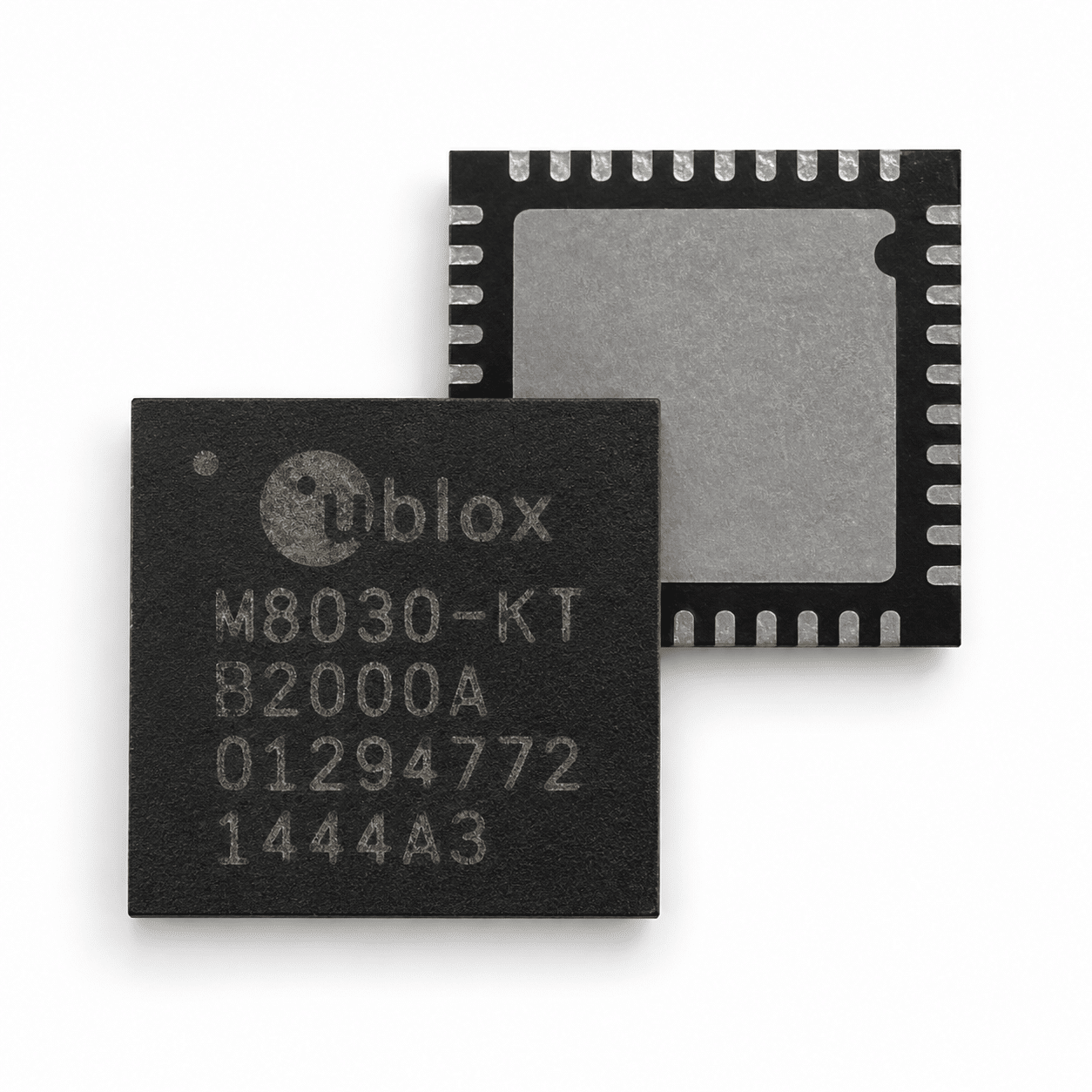

UBX-M8030-KT (Multi-GNSS Receiver IC)

UBX-M8030-KT is a professional-grade u-blox M8 GNSS receiver IC in a 40-pin QFN package. Review RF integration, host interfaces and the exact ordering revision, then request availability and a quotation.

SKU: UBX-M8030-KT Category: Brand:

Professional-grade u-blox M8 GNSS receiver chip

UBX-M8030-KT is the professional-grade QFN variant of the u-blox M8 GNSS chip family. It supports concurrent reception of up to three GNSS systems, subject to the supported constellation combinations and firmware configuration.

This is a receiver IC for integration into a designed RF board. Specify the complete chip ordering code and design revision; antenna, oscillator, power circuitry and host software must be assessed as part of the complete receiver.

Technical specifications

Checked against the u-blox UBX-M8030 series page and Product Summary UBX-15029937 R07. KT values are shown; the KA automotive temperature grade does not apply to KT.

Manufacturer / part number u-blox / UBX-M8030-KT
Device / grade u-blox M8 GNSS receiver IC / Professional
Receiver engine 72-channel M8
GNSS support GPS/QZSS, Galileo, GLONASS, BeiDou; up to 3 concurrent GNSS
Host interfaces UART, USB, SPI, DDC (I²C compliant)
Supply range 1.4–3.6 V
Digital I/O voltage 1.65–3.6 V
Oscillator options Crystal or TCXO
Operating temperature, KT −40 to +85 °C
Package 40-pin QFN; 5.00 × 5.00 × 0.59 mm

Applications

  • Embedded positioning: integrate the receiver into a host system with a suitable antenna and RF layout.
  • Tracking-system evaluation: the manufacturer provides asset-tracking material for the family; assess update needs, power budget and operating environment for the KT grade.
  • Existing GNSS board support: confirm hardware and firmware revisions before replacing an approved receiver chip.

Selection and compatibility guide

Keep the KT grade and revision

Confirm the complete ordering suffix and ROM or firmware revision. The KT professional variant must not inherit the KA automotive temperature specification or the features of a separate -DR device.

Review the RF and oscillator design

Check antenna matching, noise coupling, oscillator choice and supply filtering against the manufacturer’s integration documentation. Validate performance with the actual enclosure and antenna environment.

Check host and power modes

Review the selected serial interface, I/O levels, startup sequence and low-power behavior. Confirm which data-logging or firmware functions require external memory or other components.

Validate system positioning performance

Test acquisition and position behavior under the intended signal conditions. A receiver’s catalog sensitivity or laboratory accuracy figure is not a guaranteed field result for the finished product.

Lifecycle and component sourcing

Include the full KT ordering code, required revision and allowed alternatives in your request. For a maintenance BOM, identify whether firmware compatibility or previous qualification limits the acceptable lot. Confirm inspection and provenance documentation before accepting the offered material.

  • Confirm the complete ordering code, lot/date-code restrictions and required packing.
  • Agree inspection scope, acceptance criteria and traceability documents for the offered lot.
  • Confirm availability, price and lead time in the quotation before ordering.

Request pricing and availability

Use Add to RFQ above for UBX-M8030-KT and your quantity. Use Quick RFQ for a multi-part BOM.

  • Complete part number and required quantity
  • Target delivery date and destination
  • Packing, date-code, inspection and traceability requirements

Sending an RFQ does not place a paid order. Price, offered condition and delivery terms are confirmed in the quotation.
