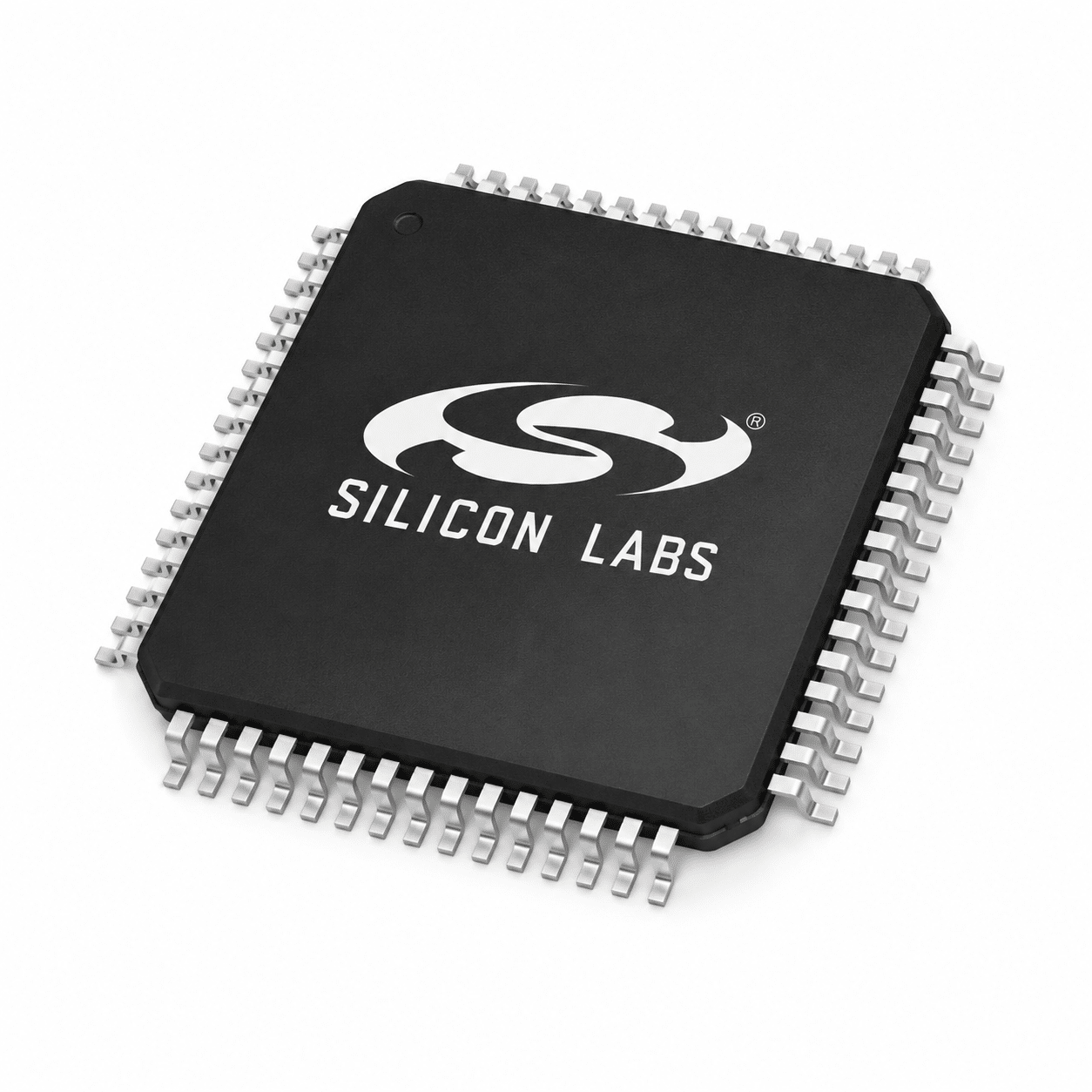

C8051F005-GQR (8-Bit Mixed-Signal Microcontroller)

8051-compatible mixed-signal MCU with 32 kB Flash, 2,304 bytes RAM, a 12-bit ADC and two 12-bit DACs. JTAG programming/debug. Send the complete -GQR code, quantity and programming needs for an RFQ.

SKU: C8051F005-GQR Category: Brand:

8051 control with 12-bit analog conversion

C8051F005-GQR is an 8051-compatible mixed-signal microcontroller with 32 kB Flash and 2,304 bytes of RAM. Its 12-bit SAR ADC and two 12-bit DACs allow measurement and analog output to be managed by firmware.

The F005 has more RAM than the original F000 variant. Silicon Labs identified F005 as a replacement for selected F000 ordering codes in its 2023 notification, but the exact package, firmware and current lifecycle still need to be checked for an offered lot.

Technical specifications

Specifications are summarized from the manufacturer documents linked below. Use the complete ordering code and the applicable datasheet revision when validating a design.

Manufacturer Silicon Labs
Ordering code C8051F005-GQR
Core CIP-51, 8051-compatible
Maximum clock / peak throughput 25 MHz / up to 25 MIPS; instruction-dependent
Flash / RAM 32 kB / 2,304 bytes
ADC 12-bit SAR, up to 100 ksps
DAC 2 × 12-bit
Interfaces UART, SPI and SMBus/I2C-compatible
Programming / debug JTAG
Recommended supply 2.7–3.6 V
Operating temperature −40°C to +85°C

Applications

  • Mixed-signal control boards requiring firmware-controlled sampling and analog outputs.
  • Legacy equipment support with a validated F005 firmware image and confirmed package pinout.

Selection and compatibility guide

Budget RAM and analog performance

Confirm stack, buffers and data storage fit 2,304 bytes. ADC resolution is not the same as absolute accuracy; check reference, gain, source impedance and acquisition timing.

Validate the exact footprint

Match the -GQR package and pin assignments to the board and manufacturer package drawing. Do not infer interchangeability from the shared F00x family name.

Review migration evidence

Use the manufacturer’s affected-part and replacement table when replacing F000. Validate firmware, programming and acceptance tests for the actual equipment.

Lifecycle and component sourcing

Include the full ordering code, silicon revision, required packing and any programming requirements in the RFQ. Confirm the offered condition, lot/date codes and available traceability before commercial approval.

  • Confirm the complete ordering code, lot/date-code restrictions and required packing.
  • Agree inspection scope, acceptance criteria and traceability documents for the offered lot.
  • Confirm availability, price and lead time in the quotation before ordering.

Request pricing and availability

Use Add to RFQ above for C8051F005-GQR and your quantity. Use Quick RFQ for a multi-part BOM.

  • Complete part number and required quantity
  • Target delivery date and destination
  • Packing, date-code, inspection and traceability requirements

Sending an RFQ does not place a paid order. Price, offered condition and delivery terms are confirmed in the quotation.
