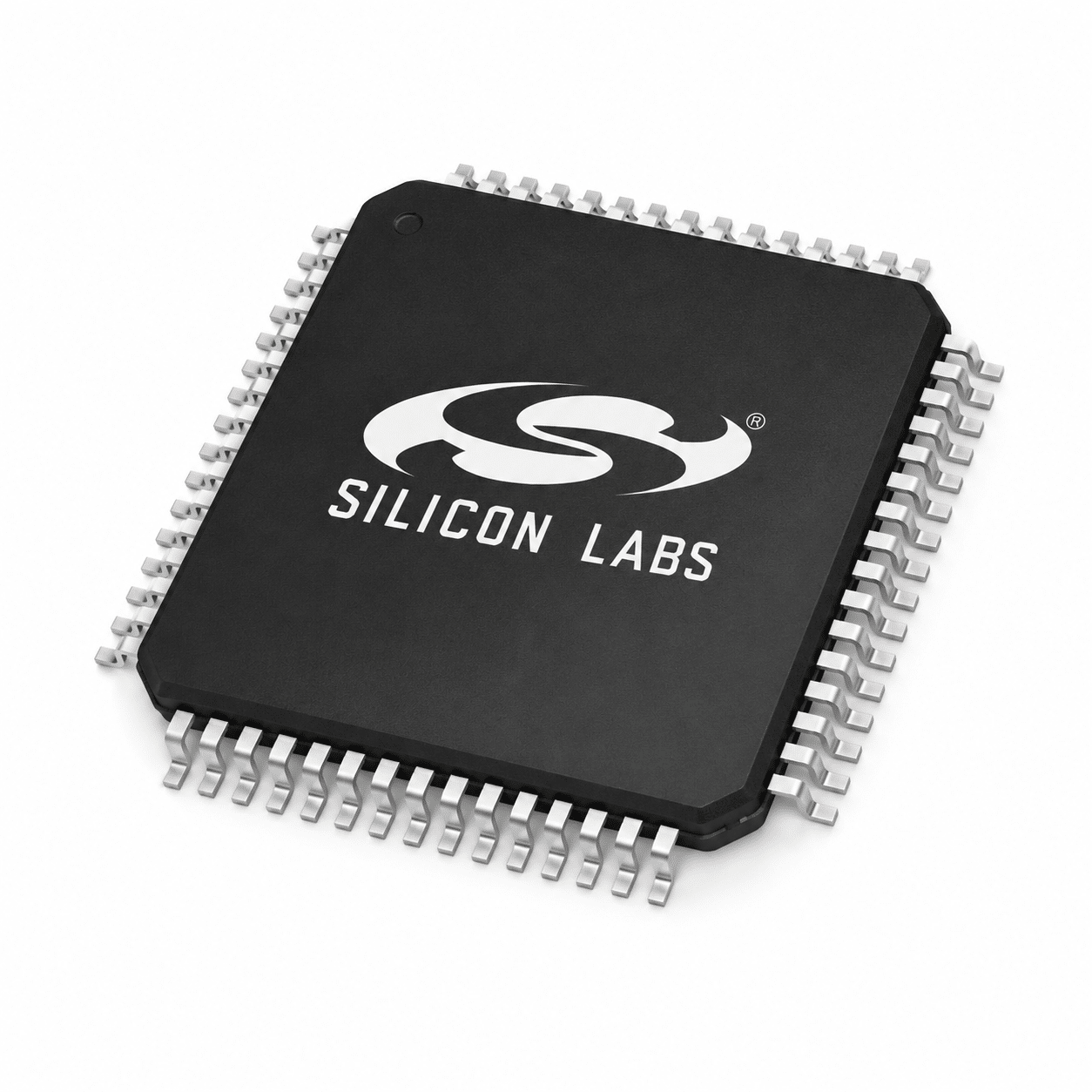

C8051F041-GQR (25 MHz 8-Bit CAN Microcontroller)

Silicon Labs 8051-compatible MCU with 64 kB Flash, 4,352 bytes RAM and up to 25 MIPS. 64-pin TQFP; 12-bit SAR, up to 100 ksps. Send the full code, quantity and programming needs for an RFQ.

SKU: C8051F041-GQR Category: Brand:

Mixed-signal control with C8051F041

C8051F041-GQR is an 8051-compatible mixed-signal microcontroller with 64 kB Flash, 4,352 bytes of RAM and up to 25 MIPS peak throughput. Its main ADC is 12-bit sar, up to 100 ksps, allowing firmware to combine measurement and control in one device.

The F041 adds a CAN 2.0B controller to its mixed-signal peripherals. A separate CAN physical-layer transceiver is needed for connection to the bus.

Technical specifications

Specifications are summarized from the manufacturer documents linked below. Use the complete ordering code and the applicable datasheet revision when validating a design.

Manufacturer Silicon Labs
Ordering code C8051F041-GQR
Core CIP-51, 8051-compatible
Maximum clock / peak throughput 25 MHz / up to 25 MIPS; instruction-dependent
Flash / RAM 64 kB / 4,352 bytes
Digital I/O 32
ADC 12-bit SAR, up to 100 ksps; additional 8-bit ADC up to 500 ksps
DAC 2 × 12-bit DAC
Package 64-pin TQFP
Programming / debug JTAG
Recommended supply 2.7–3.6 V
CAN CAN 2.0B controller; external bus transceiver required

Applications

  • Measurement and control circuits where the 12-bit sar input path, reference and timing meet the signal requirements.
  • Maintenance of established equipment using an available, validated firmware image and the exact device pinout.

Selection and compatibility guide

Match the analog variant

The F041 adds a CAN 2.0B controller to its mixed-signal peripherals. A separate CAN physical-layer transceiver is needed for connection to the bus. Confirm input range, reference, source impedance and conversion timing against the analog specification.

Check the board and firmware

Validate the 64-pin TQFP pin map, peripheral multiplexing, memory map and startup clock. Retain access to the JTAG programming/debug interface and the approved firmware image.

Review production continuity

Confirm the exact ordering suffix and lifecycle notice. A related 8051 MCU may require board changes, code changes and analog recalibration; accept a substitute only after validation.

Lifecycle and component sourcing

Include the full ordering code, silicon revision, required packing and any programming requirements in the RFQ. Confirm the offered condition, lot/date codes and available traceability before commercial approval.

  • Confirm the complete ordering code, lot/date-code restrictions and required packing.
  • Agree inspection scope, acceptance criteria and traceability documents for the offered lot.
  • Confirm availability, price and lead time in the quotation before ordering.

Request pricing and availability

Use Add to RFQ above for C8051F041-GQR and your quantity. Use Quick RFQ for a multi-part BOM.

  • Complete part number and required quantity
  • Target delivery date and destination
  • Packing, date-code, inspection and traceability requirements

Sending an RFQ does not place a paid order. Price, offered condition and delivery terms are confirmed in the quotation.
